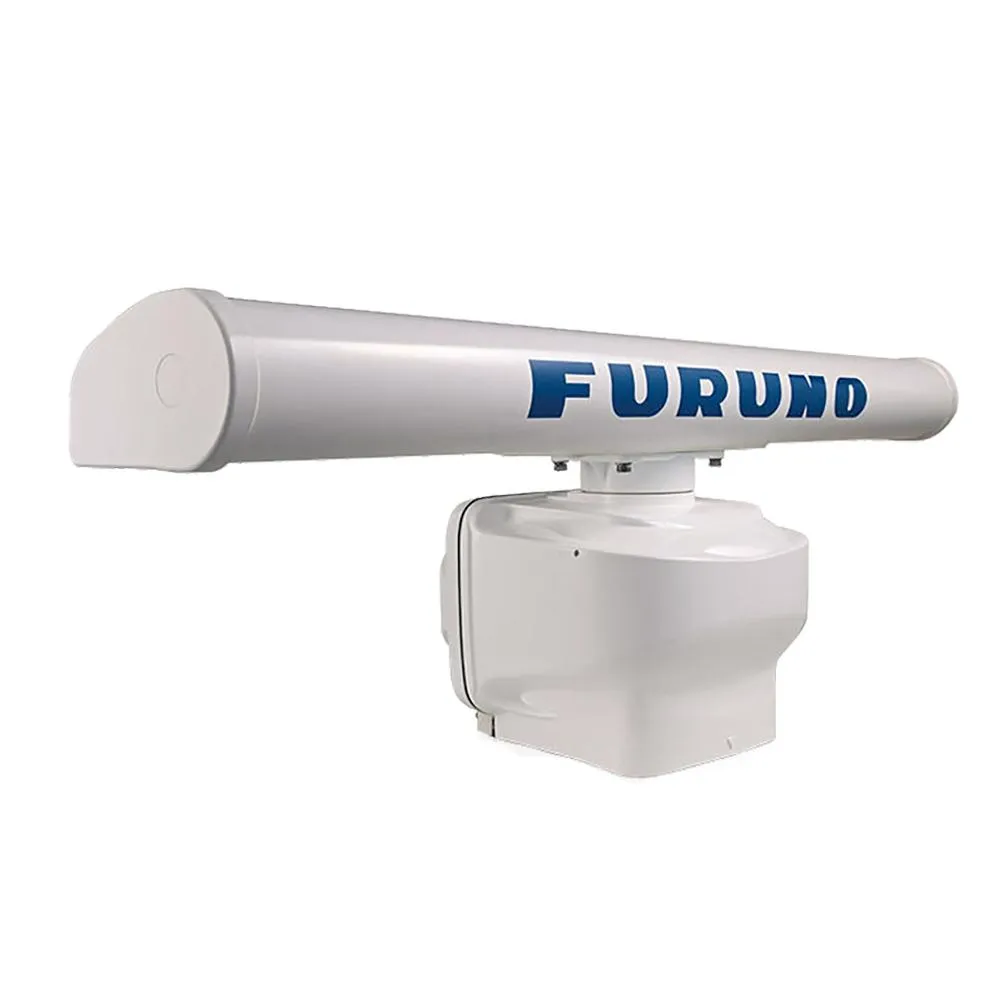

DRS12AX 12kW UHD Digital Radar with Pedestal 15M Cable & 4' Open Array Antenna
Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
- 12kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- Smart-connector cable
- 4ft Antenna
- 15M Cable
- 96NM Range
- Compatible with NavNet TZtouch, NavNet TZtouch2 and TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS12AX is a 24V system; a converter will be required for use with 12V power systems
Specifications:
- Power - Output: 12kW
- Array Size (Inches): 48"
- Box Dimensions: 8"H x 17"W x 17"L WT: 65.6 lbs
