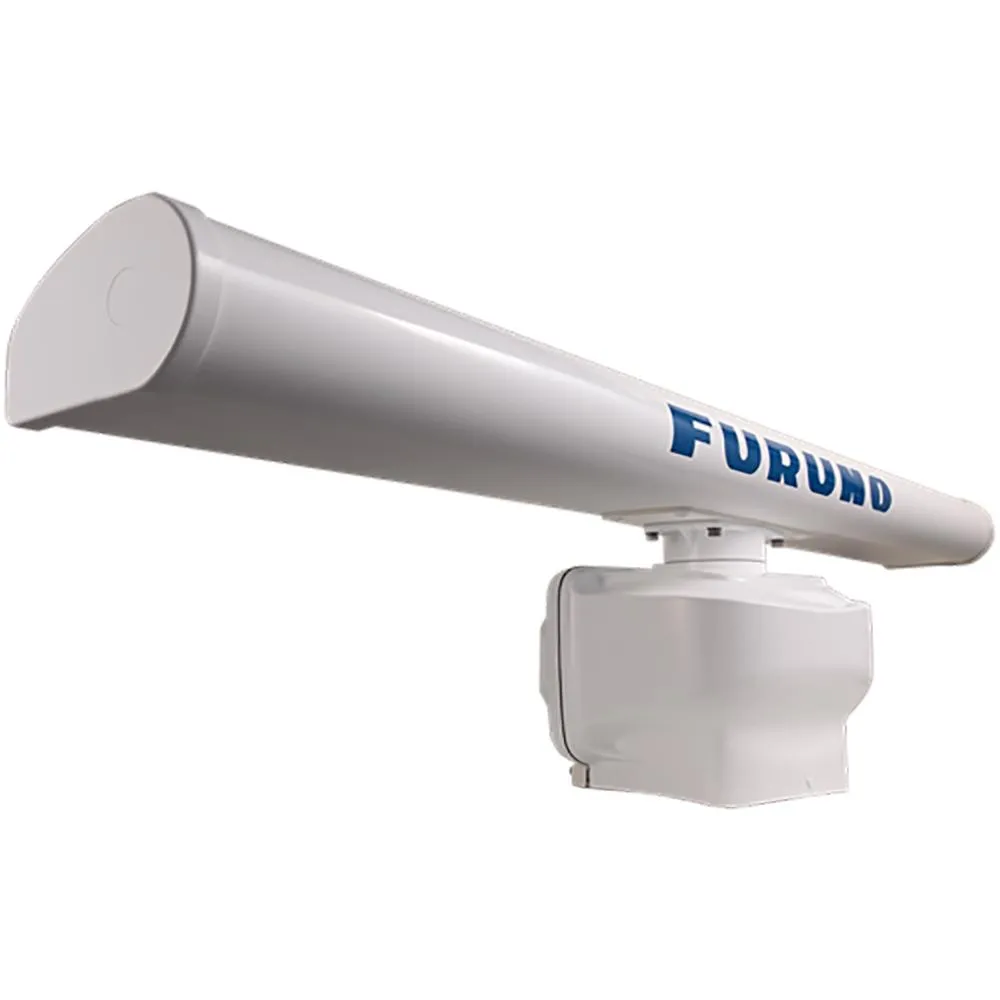

DRS25AX 25kW UHD Digital Radar with Pedestal, 15M Cable & 6' Open Array

25kW UHD Digital Radar for TZtouch, TZtouch2 and TZtouch3. DRS25AX "X-Class", a whole new class of Radar!

Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS25AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Features:

• 25kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target Tracking™
• Bird Mode
• Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• Smart-connector cable
• 6' Open Array
• 15M Cable
• Compatible with NavNet TZtouch, NavNet TZtouch2 and TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS25AX is a 24V system; a converter will be required for use with 12V power systems

Specifications:

• Power - Output: 25kW
• Array Size (Inches): 72"
• Box Dimensions: 1"H x 1"W x 1"L WT: 70.6 lbs
