FEATURES
A better ride by design. Attract more biking enthusiasts with the industry’s most stable, comfortable and versatile step-through bikes.
AT A GLANCE
Experience a better ride by design with the unmatched ergonomics of the industry’s most stable, comfortable and versatile step-through bike.

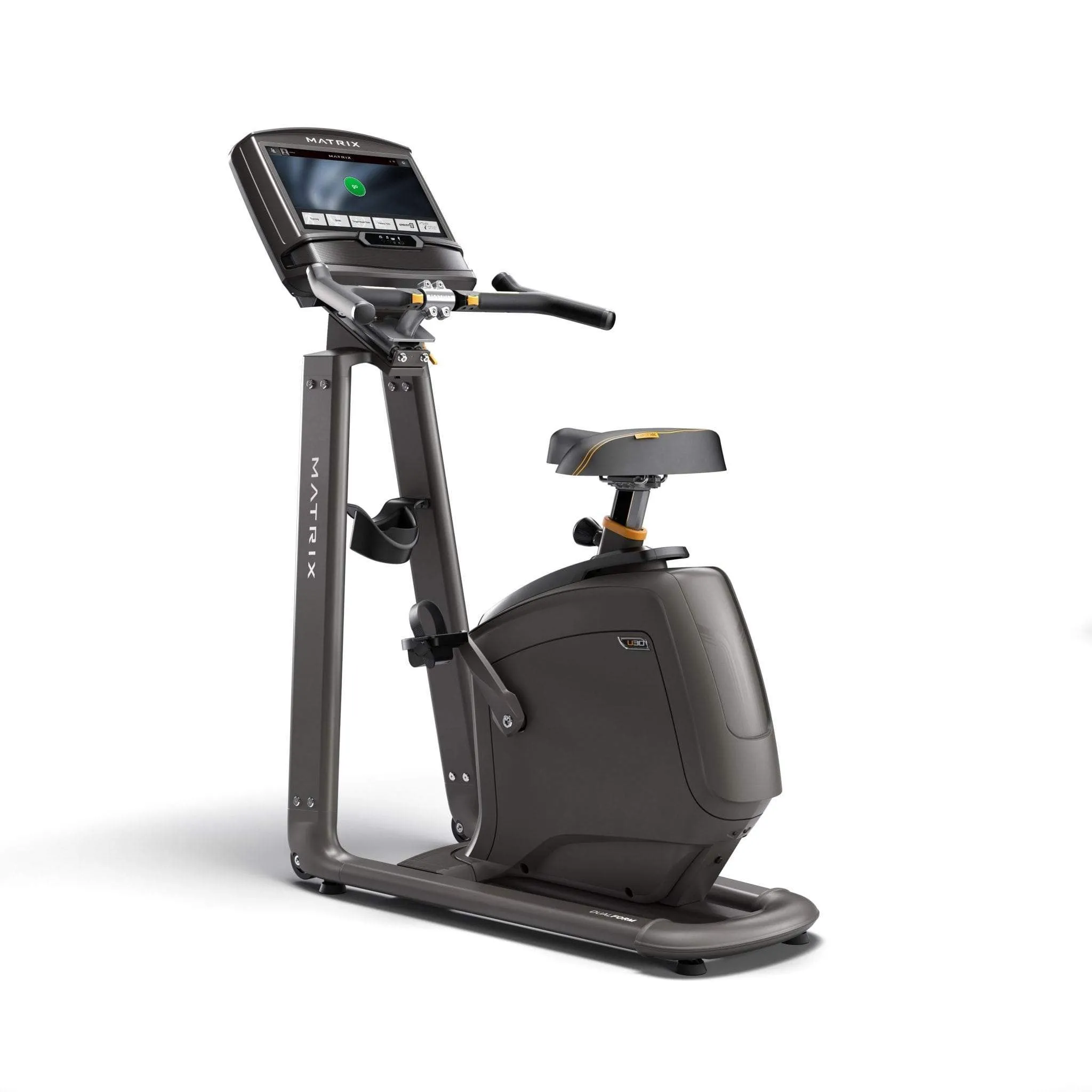

Our U30 Upright Bike includes our exclusive Dual Form Frame and Comfort Arc Seat.
DUAL FORM FRAME
Our Dual Form Frame significantly improves rider stability over single-post designs and offers a low step-through height for easy access.
COMFORT ARC SEAT
Our Comfort Arc Seat is ergonomically molded to provide unmatched comfort, support and balance during workouts.
EASILY CUSTOMIZABLE
You can attach standard outdoor handlebars, saddle and pedals to customize your cycle to your unique style and needs
SMART ERGONOMICS
An optimized Pedal Spacing (a scientific measurement of the distance between the bike’s key elements) improves the application of force during the pedal stroke, making every ride more efficient and easier on your joints.
INDUSTRY-LEADING ADJUSTABILITY

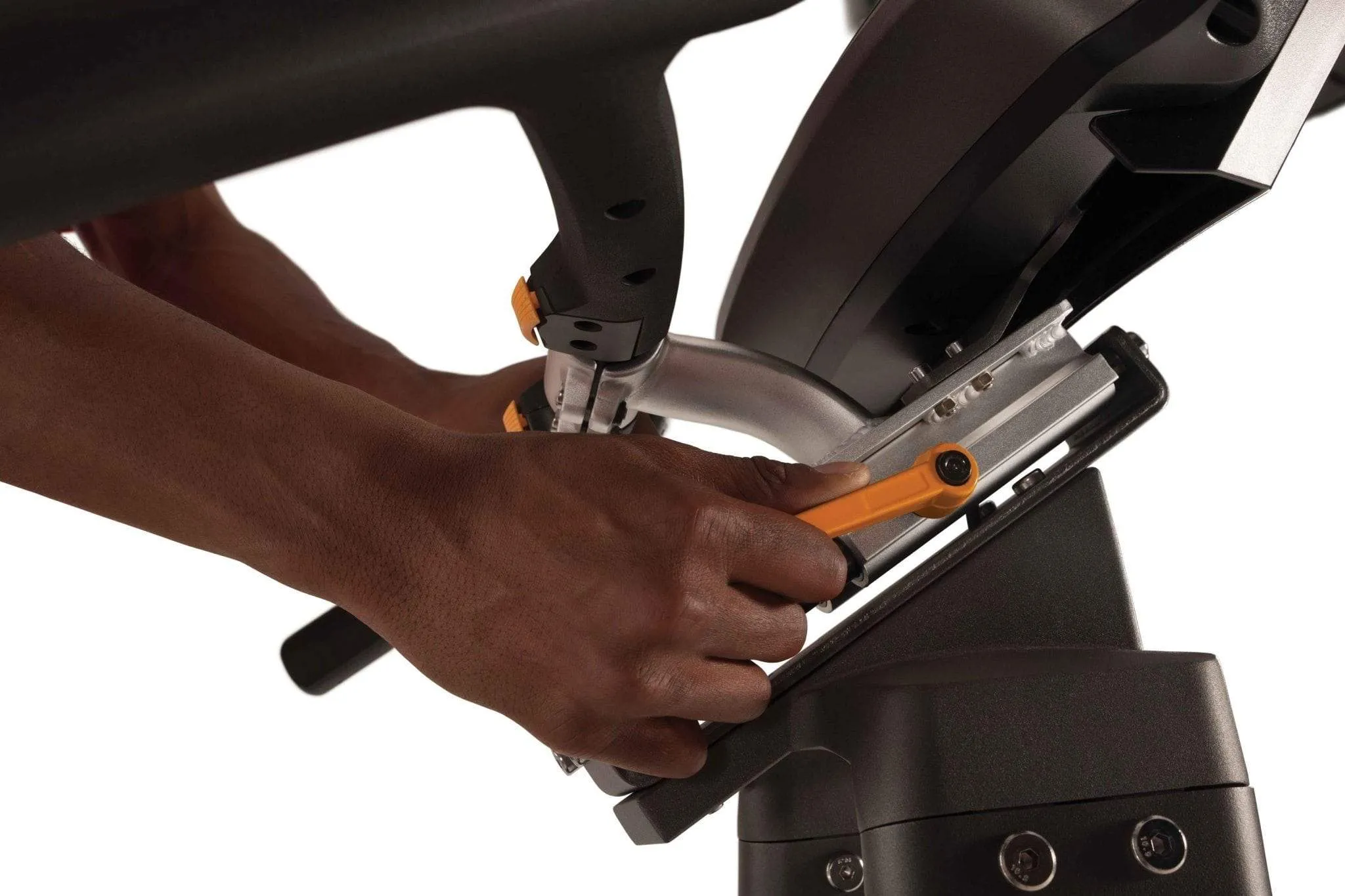

The handlebars adjust via an easy-lift lever and the seat adjusts with a turn-and-pull knob for an ideal fit, plus handgrip resistance controls make it easy to adjust the level of challenge without interrupting your workout.
SPECIFICATIONS
-
FRAME
- Frame Type Dual Form step-through upright
- Resistance System ECB magnetic braking system
- Resistance Range 20 Levels, electronically adjustable
- Flywheel Weight 10.5 kg / 23 lbs.
- Seat Type Comfort Arc upright seat, interchangeable

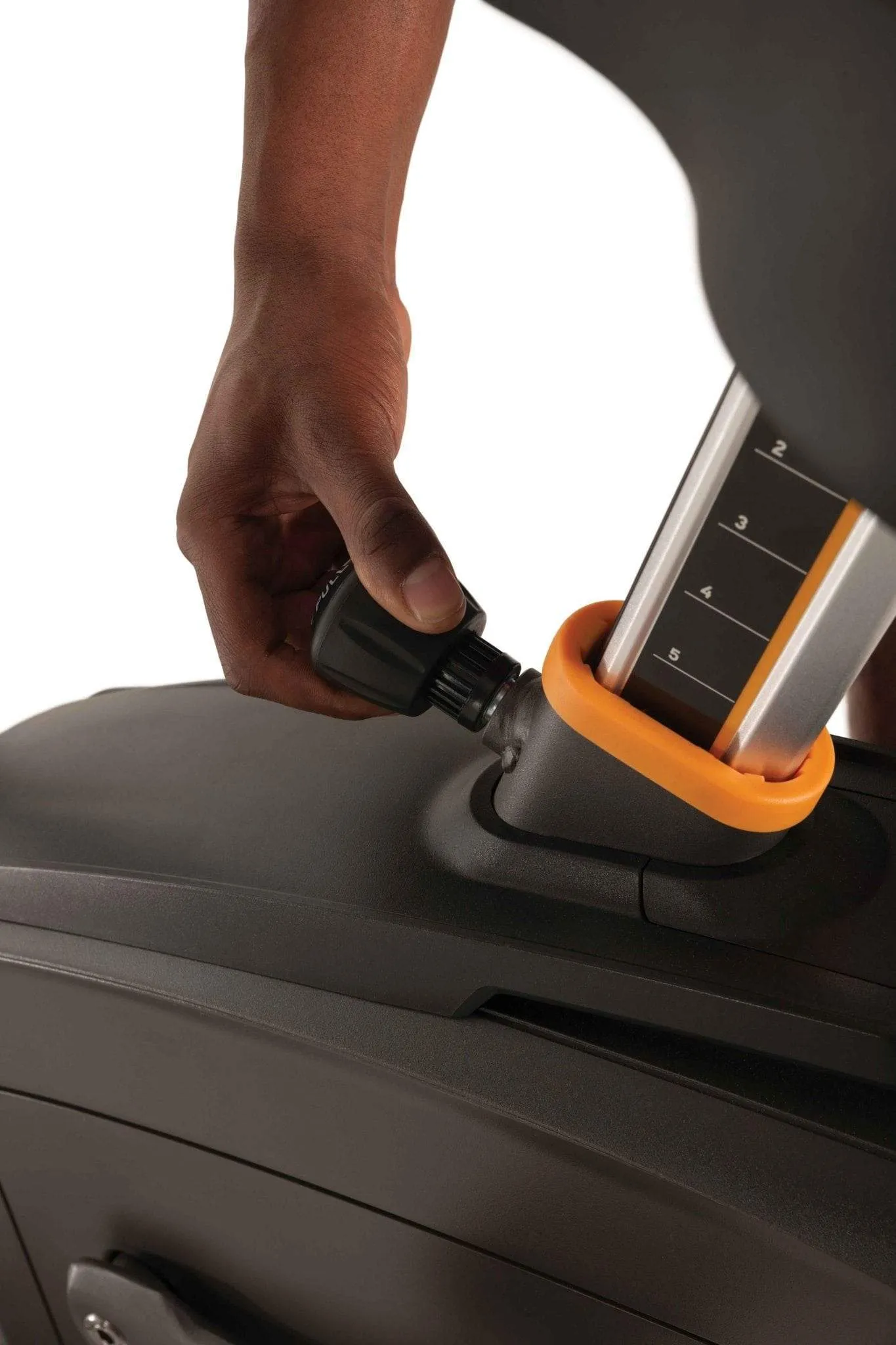

- Seat Adjustment Up / down via turn-and-pull knob
- Handle Bar Type Multi-grip handlebars with resistance toggles and heart rate grips, adjustable console height, interchangeable
- Pedal Type Self-balancing pedals with adjustable straps

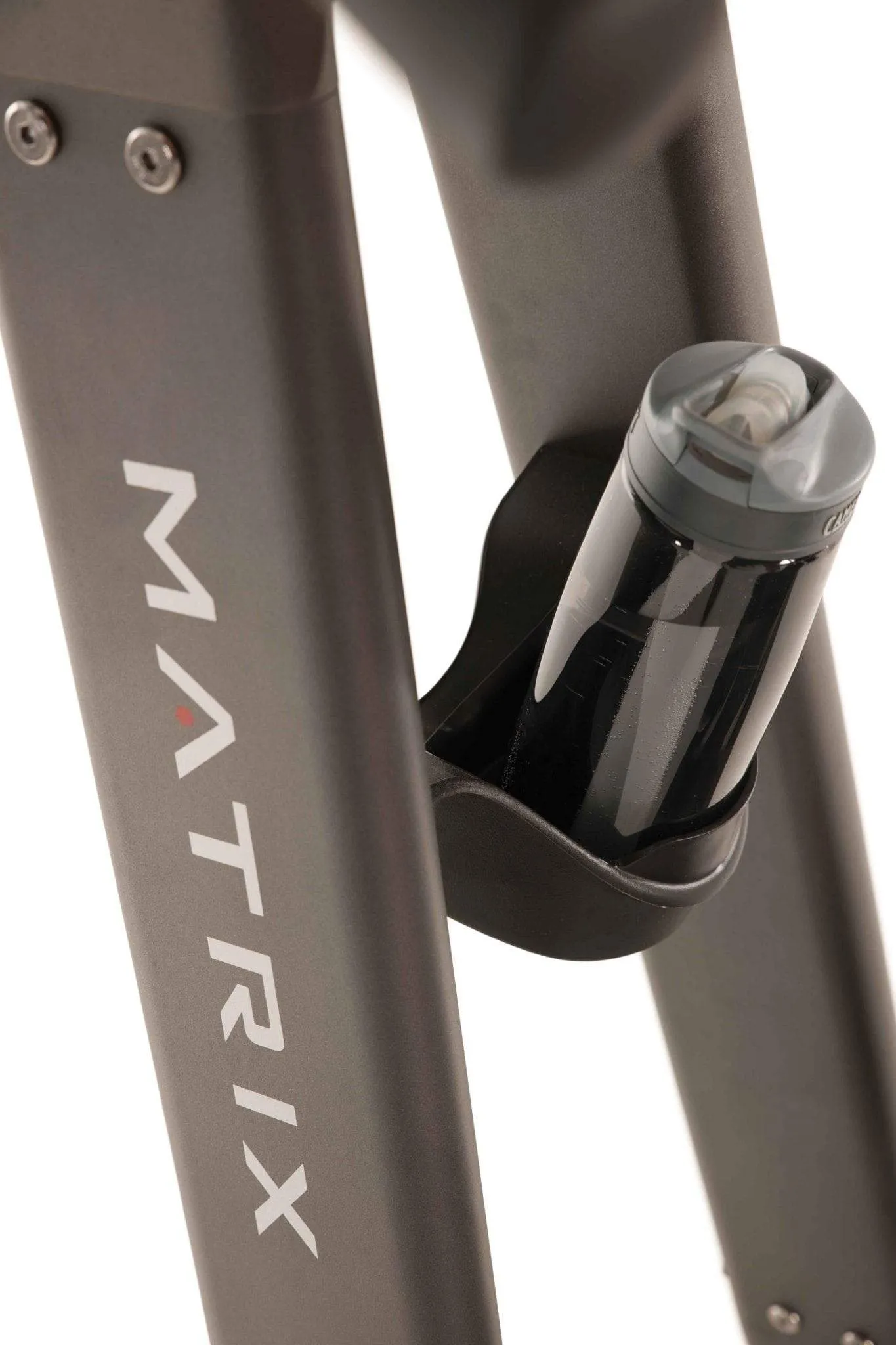

- Accessories Water bottle holder
-
CONSOLE
- Wireless Requirements 802.11b/g/n in 2.4 GHz range, minimum speed 3 Mbps (5 Mbps for streaming in High Definition)

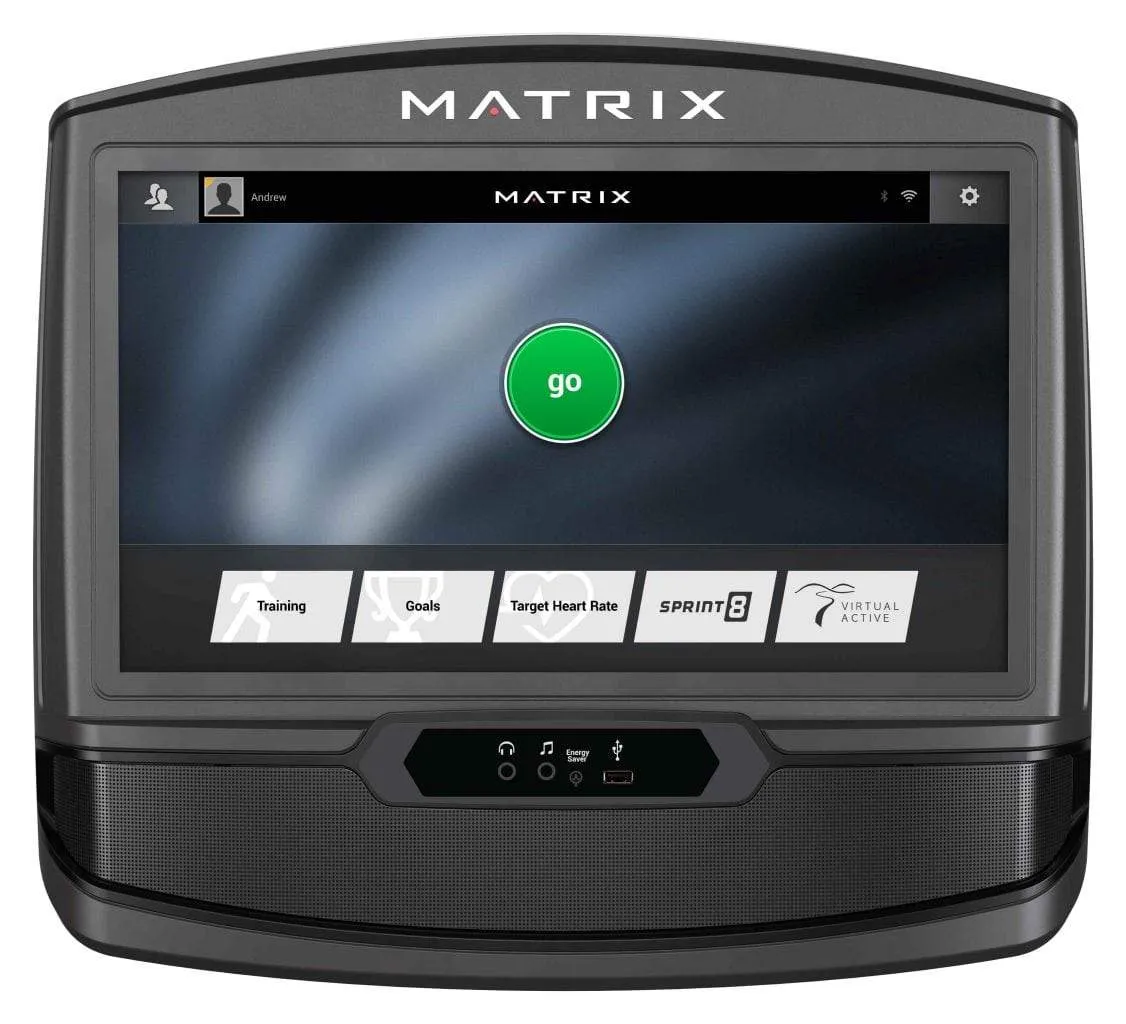

- Display Type 16″ Class HD touchscreen (40 cm)
- WiFi Enabled Software updates, ViaFit Connectivity, entertainment apps
- Bluetooth Enabled Stream audio from phone, tablet, MP3 player; connect wireless headphones; connect wireless heart rate monitor
- USB Port Software updates, charge device (up to 1 amp); stream media via USB flash drives, Windows phones / tablets, Android phones / tablets
- Speakers 5 Watt
- Console Apps Simple, Track, Virtual Active, Change Workout, Weather, MyMedia, Web Browser (other apps vary by market)
- Virtual Active Integrated Yes
- Passport Ready Yes
- ViewFit Connectivity Yes
- Heart Rate Wireless heart rate, Polar heart rate strap included
- Console Extras Integrated reading rack, energy saver mode, audio in/out
- Workout Programs 11 Total — Manual, Fat Burn, Rolling Hills, Intervals, Time Goal, Distance Goal, Calorie Goal, Target HR, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies
- Workout Feedback Time Elapsed, Time Goal, Time Remaining, Clock, Miles / Kilometers, RPM, Current Speed (MPH / KPH), Pace, Average Pace, Heart Rate, Peak Heart Rate, Calories, Calories / Hour, METS, Resistance, Last Resistance
-
TECH SPECS
- Assembled Dimensions (L x W x H) 109 x 64 x 120 cm / 43″ x 25.2″ x 47.2″
- Assembled Weight 52 kg / 114 lbs.
- User Weight Capacity 159 kg / 350 lbs.
- User Height Range 150 cm – 193 cm / 4’11” – 6’4″
- Electrical Requirements 120V AC power, 15A circuit (voltage may vary outside the USA)
- Power Supply 12V / 2A Power adapter
