Product Properties
- Display shows user and patient names or IDs for increased patient safety
- Data transmission controlled by touchscreen
- Large platform made of tested seca Bearclaw Glass® for absolute breakage resistance and perfect hygiene

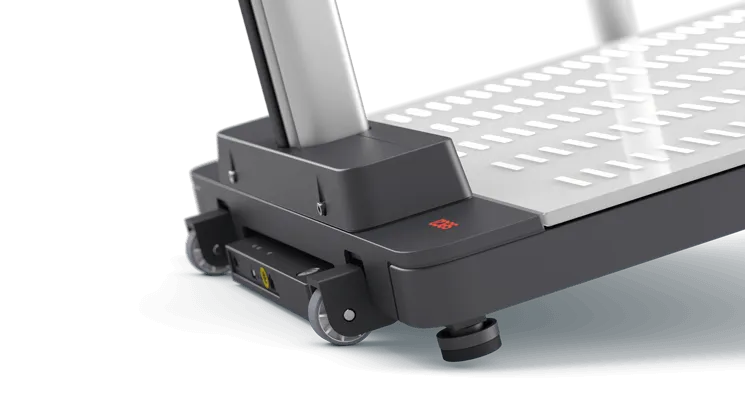

- Convenient transport with extremely robust rubber wheels

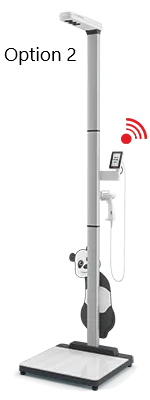

- Optional panda bear facilitates measuring and weighing of children
- EMR-validated: transmit measured data directly to any electronic medical record system or printer

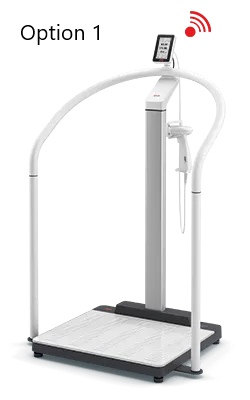

- Safe weighing with a stable handrail (Option 1 & 3)
- Lightweight, sophisticated design and extremely robust thanks to steel handrail that is directly attached to the cast iron pedestal (Option 1 & 3)

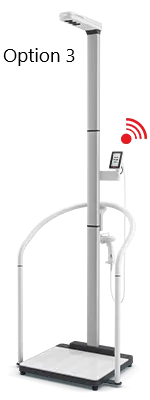

- Outstanding precision and high-speed measuring thanks to perfected ultrasound technology (Option 2 & 3)

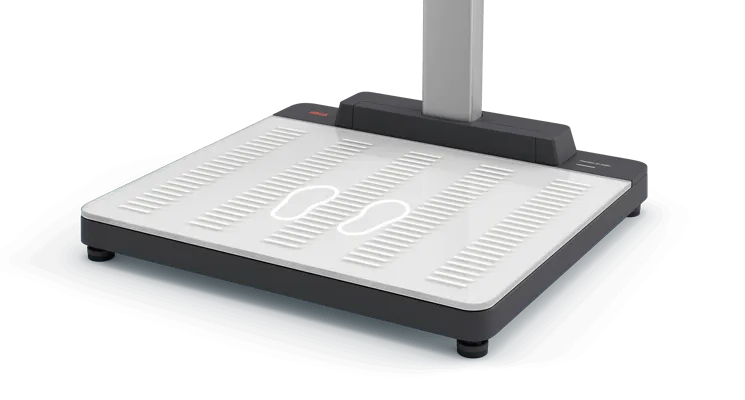

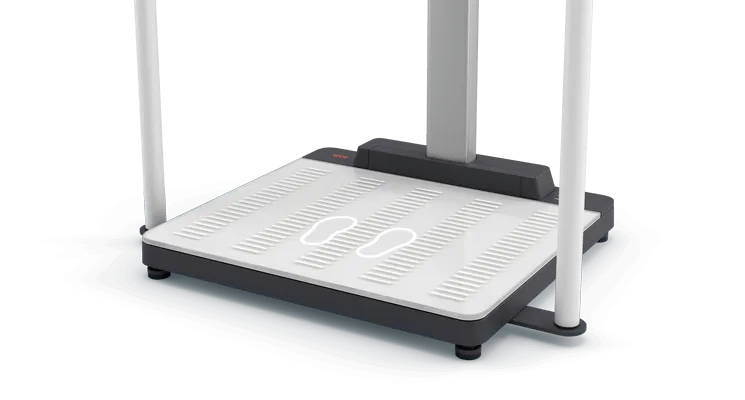

- Illuminated LED footprints in the weighing platform show patients the correct standing position for accurate height measurement (Option 2 & 3)
- Voice guidance to support the measurement process (Option 2 & 3)
Key Technical Data
Capacity: 300 kg
Graduation: 50 g < 150 kg > 100 g
Power supply: Power adapter
Net weight: 3.9 sts / 25.0 kg // 3.4 sts / 22.0kg
Options: with handrail / with ultrasonic height measurement
Ports: LAN / USB bar code scanner / Wi-Fi
Product width: 801 mm
Product height: 1,280 mm // 2,387mm
Product depth: 653 mm // 614 mm
Platform width: 600 mm
Platform height: 70 mm
Platform depth: 467 mm
Measuring range: 60 - 220 cm (Option 2 & 3)
Graduation measuring range: 1mm
Functions and Properties
- Display of user and patient name or ID
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- Automatic weighing range switch-over
- Adjustable damping
- Auto-BMI
- Auto-BSA (Body surface area)
- Mother child function
- Standby mode
- SEND / Auto-SEND
- Confirm button
- Acoustic signals can be activated
- Wi-Fi
- Ethernet
- Customizable shortcut buttons
- Backlighting
