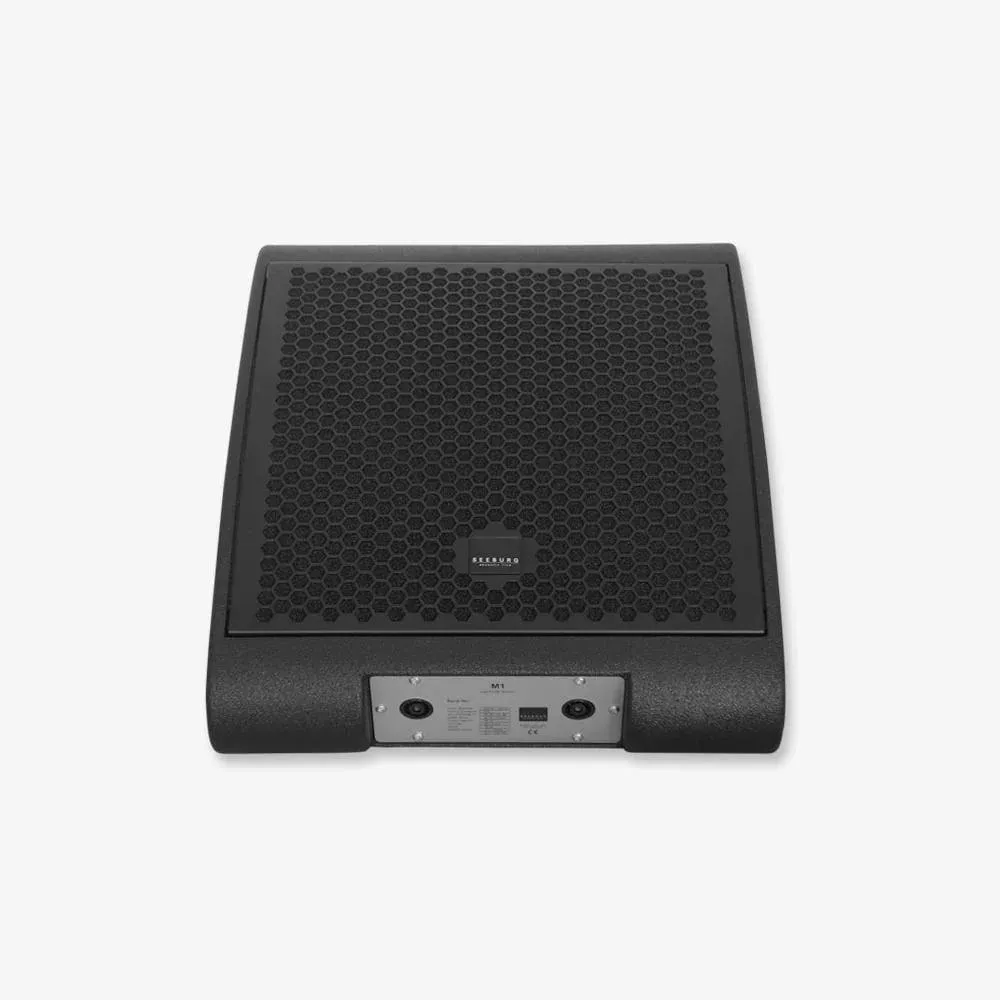

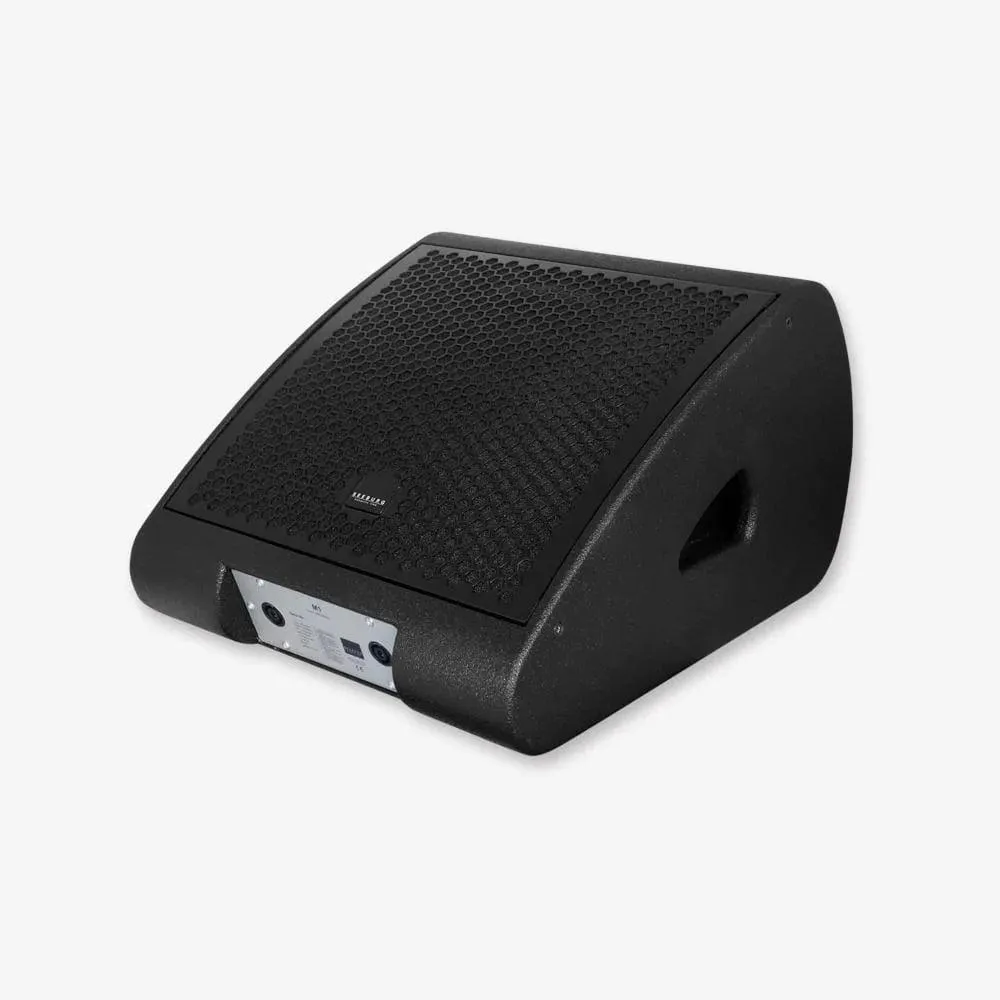

Ultra flat stage monitor fitted with lightweight coaxial 12” /1.4” Neodymium drivers. With high power reserves, homogeneous sound distribution and low tendency to feedback, the M 3 is a tool that will greatly simplify a sound engineer’s job. Combined with the optional flying bracket, the system can also be used both as a downfill and as a universal sound system.
Tech Specs

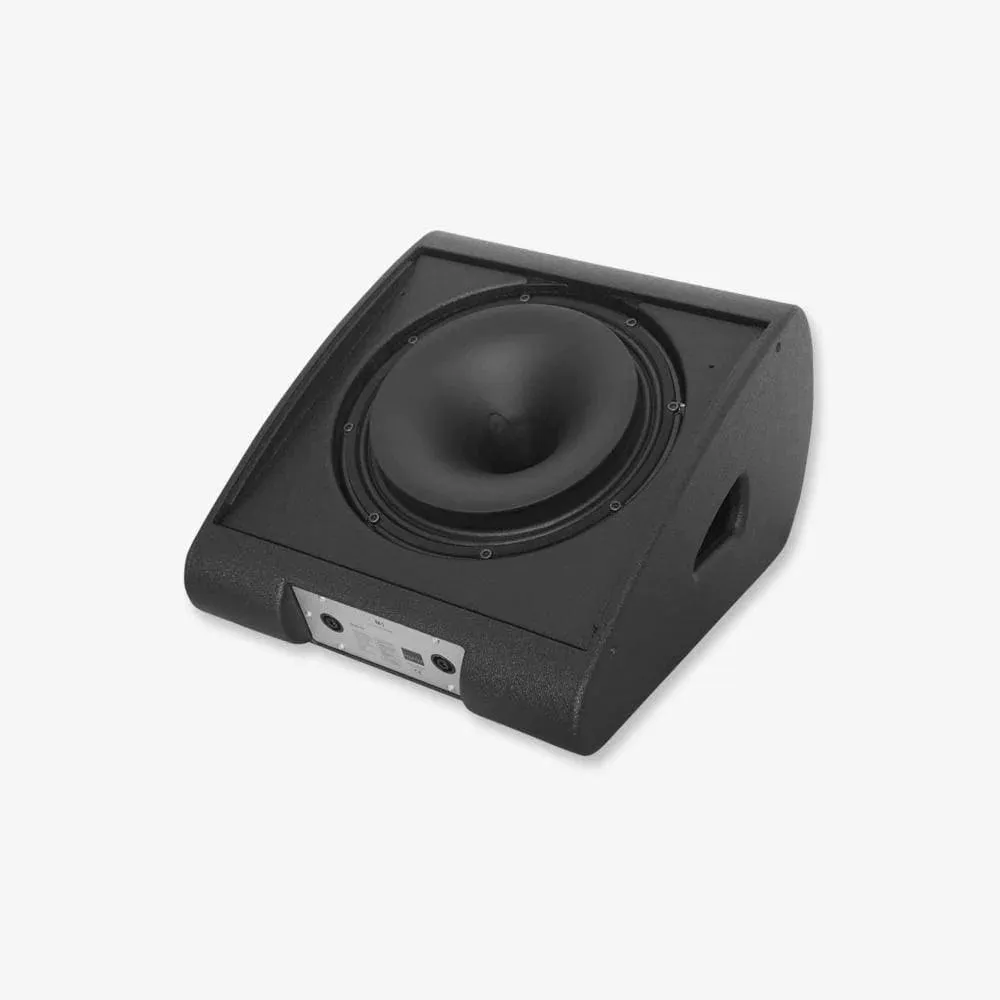

| Speaker Components | 12“ Nd / 1,4“ Nd Coaxial |
| Description | Low Profile Monitor |
| Power AES / Peak | 500 W / 1500 W |
| Impedance nominal | 8 Ω |
| SPL | 1 W / Peak @ 1m 98 dB / 133 dB |
| SPL | Peak@1m - - - |
| Max. | Input Signal - - |
| DSP | - - - |
| AD / DA | - - - |
| Latency | - - - |
| Usable Range | 80 Hz - 19 kHz (-6 dB) |
| Tuning Frequency excursion minimum | 90 Hz |
| X - Overpoint acoustica | l 1,2 kHz |
| Coverage horizontal / vertical | 60° conical |
| Max. Splay Angle | |

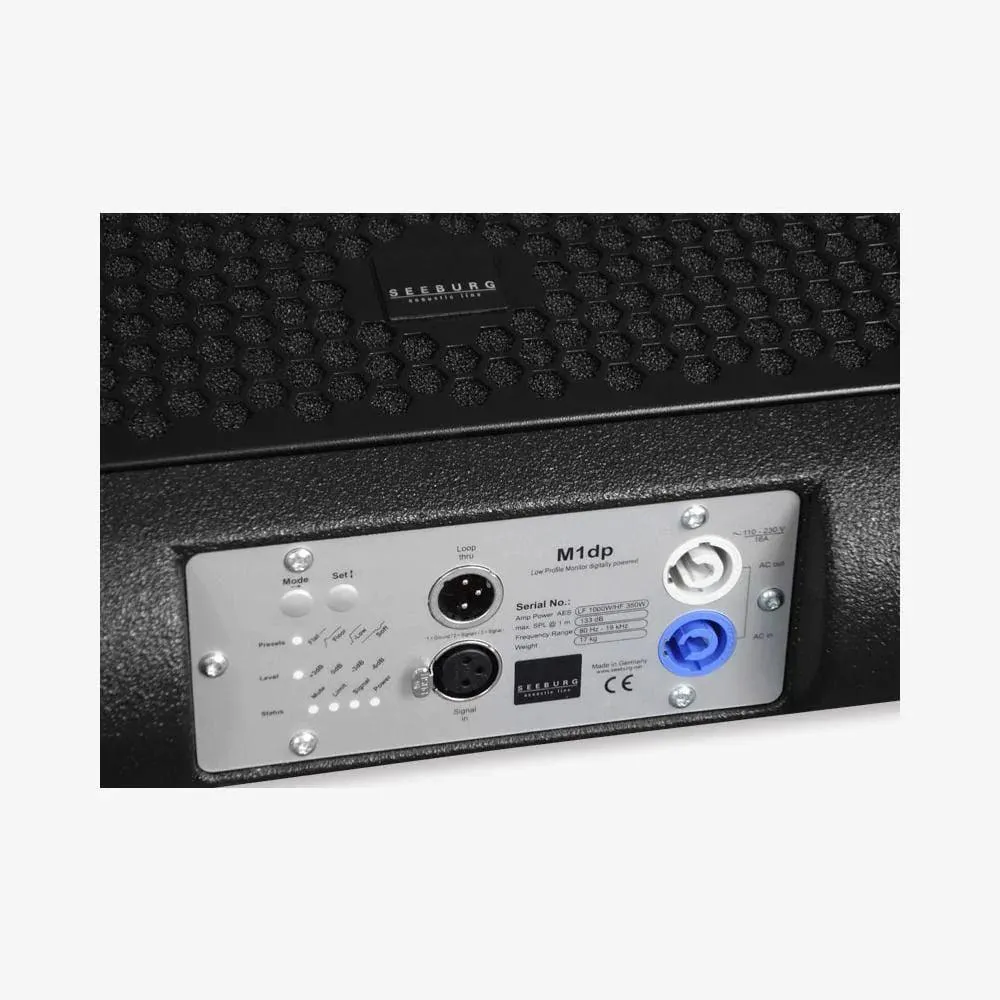

| Connectors | 2 x Neutrik Speakon NL4MP in/out |
| Coding: | 1 /- HiMid, 2 /- loop thru |
| Handles | 2 x |
| Rigging / Fittings | 2 x M10 |
| Weight | 16 kg |
| Size height x width x depth | 27,4 x 40,0 x 47,0 cm |
