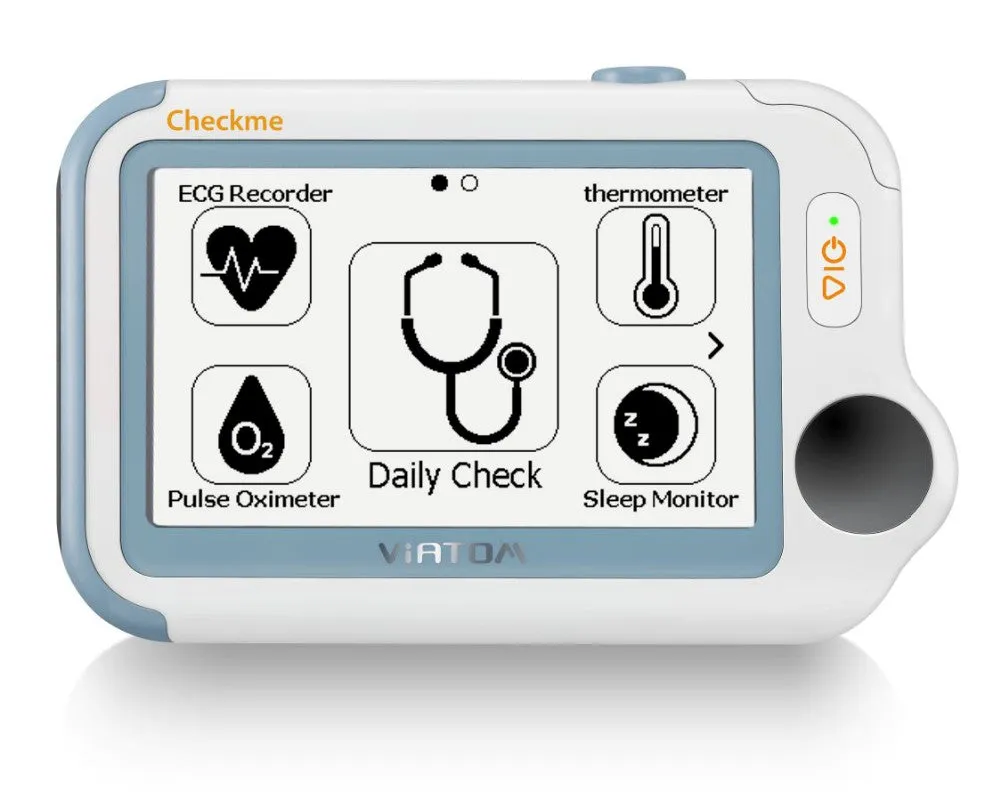

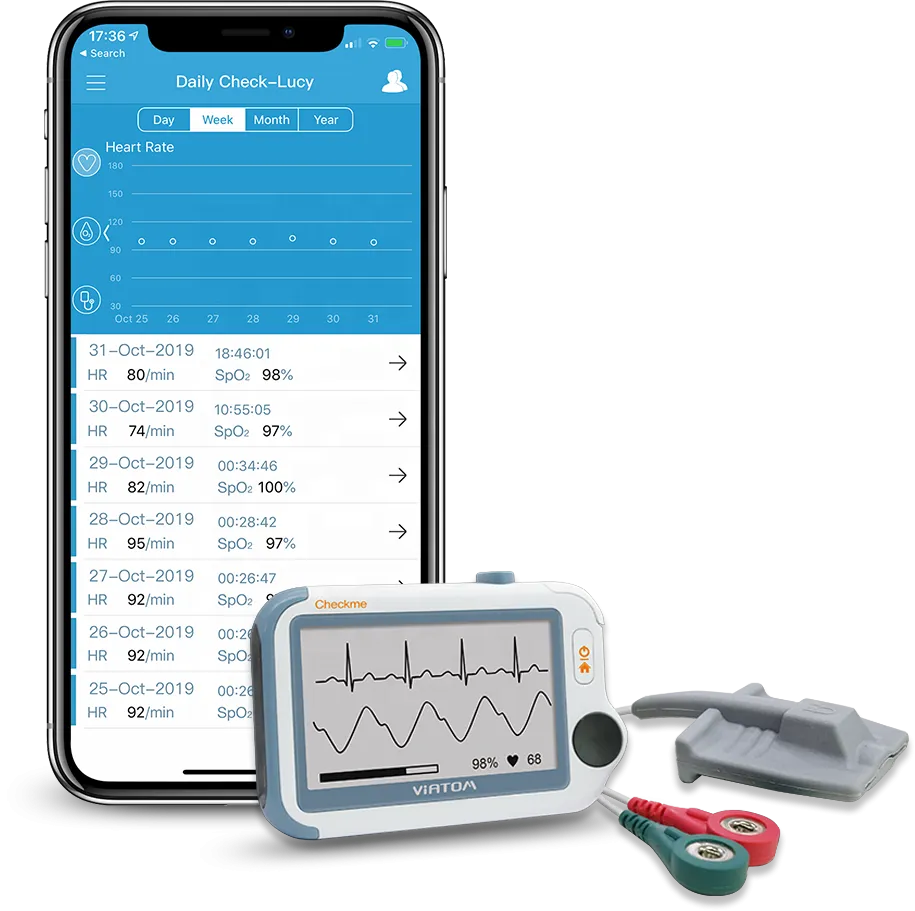

Viatom Checkme Pro Handheld Patient Vital Signs and ECG/EKG Machine, Glucose Meter
This is a very versatile and portable health check device, capable of performing several vital sign measurements, such as ECG, Sp02, Temperature (C & F).

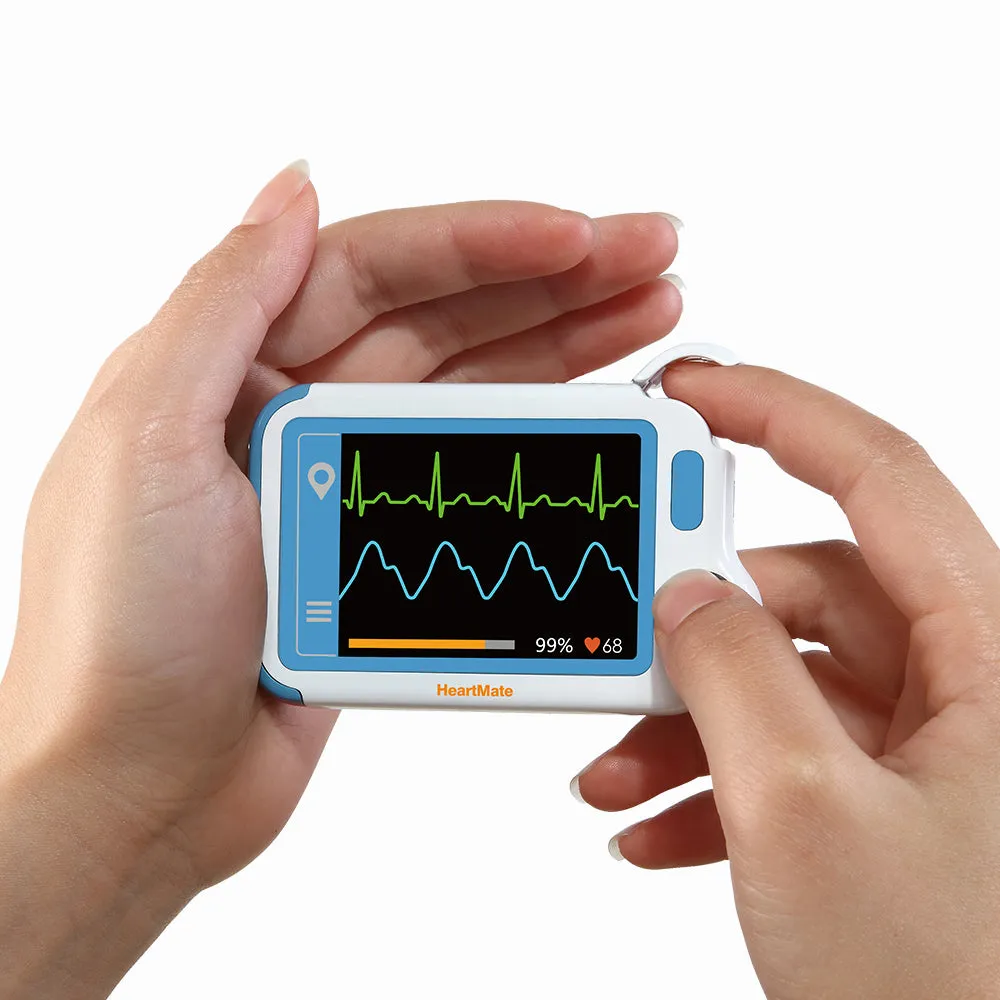

The ECG Recorder supports cable and cable-free operation. With a 500Hz sampling rate and wide bandwidth, CheckMe Pro can replay 30 and 60s of full disclosure waveform. The ECG algorithm is able to provide heart rate & QRS duration, ST segment, QT/QTC interval and rhythm analysis. QT/QTC can help to manage drugs which may induce QT prolongation

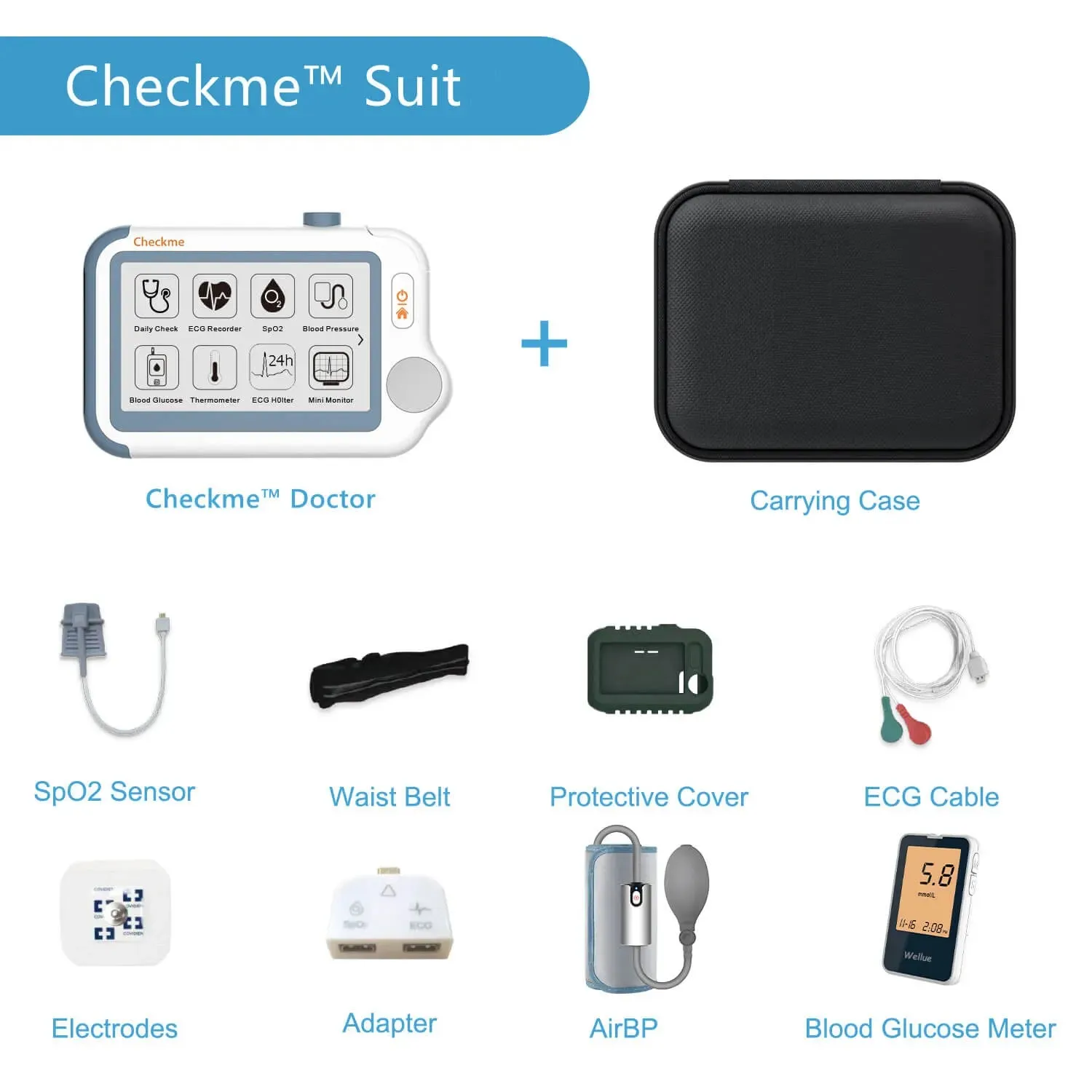

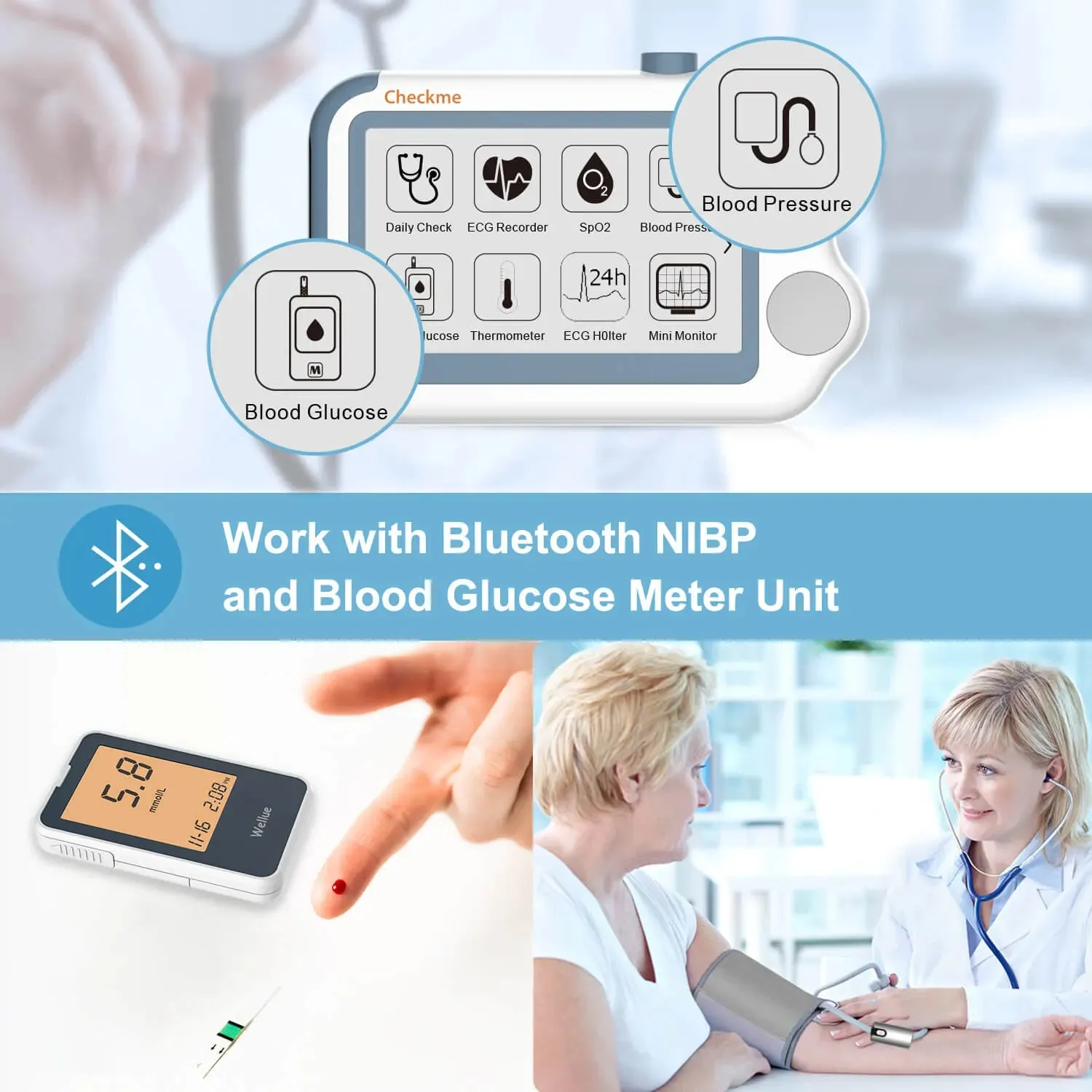

This kit also comes with a Blood Glucose Meter. In the package you will find:
- Main Unit with Built-in Sensors

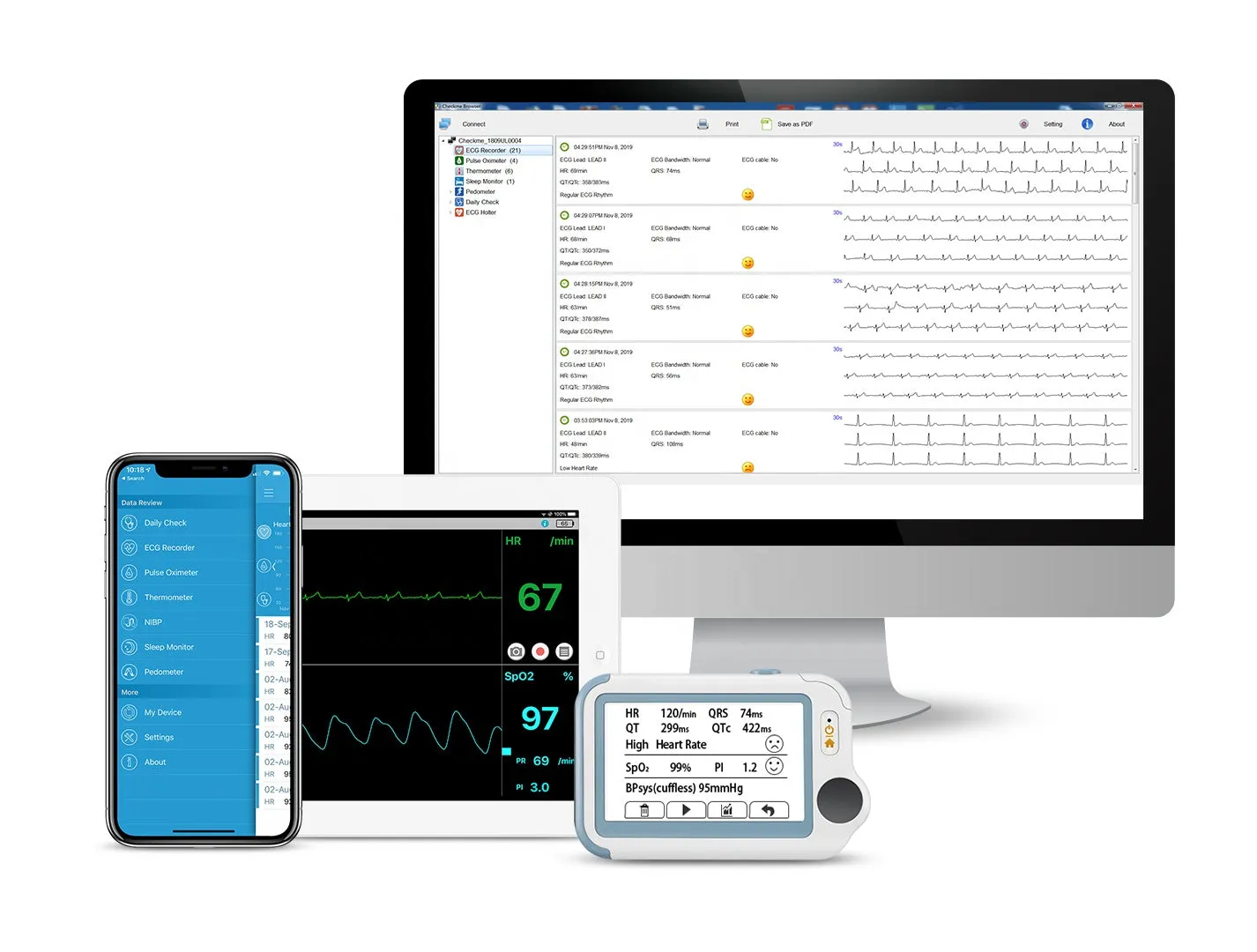

- Free APP & PC Software (requires smart phone or PC to operate)
- Charging Cable
- Protective Cover
- Lanyard
- EKG Cable & Electrodes
- SpO2 Cable
- Waist Belt
- Wrist Band

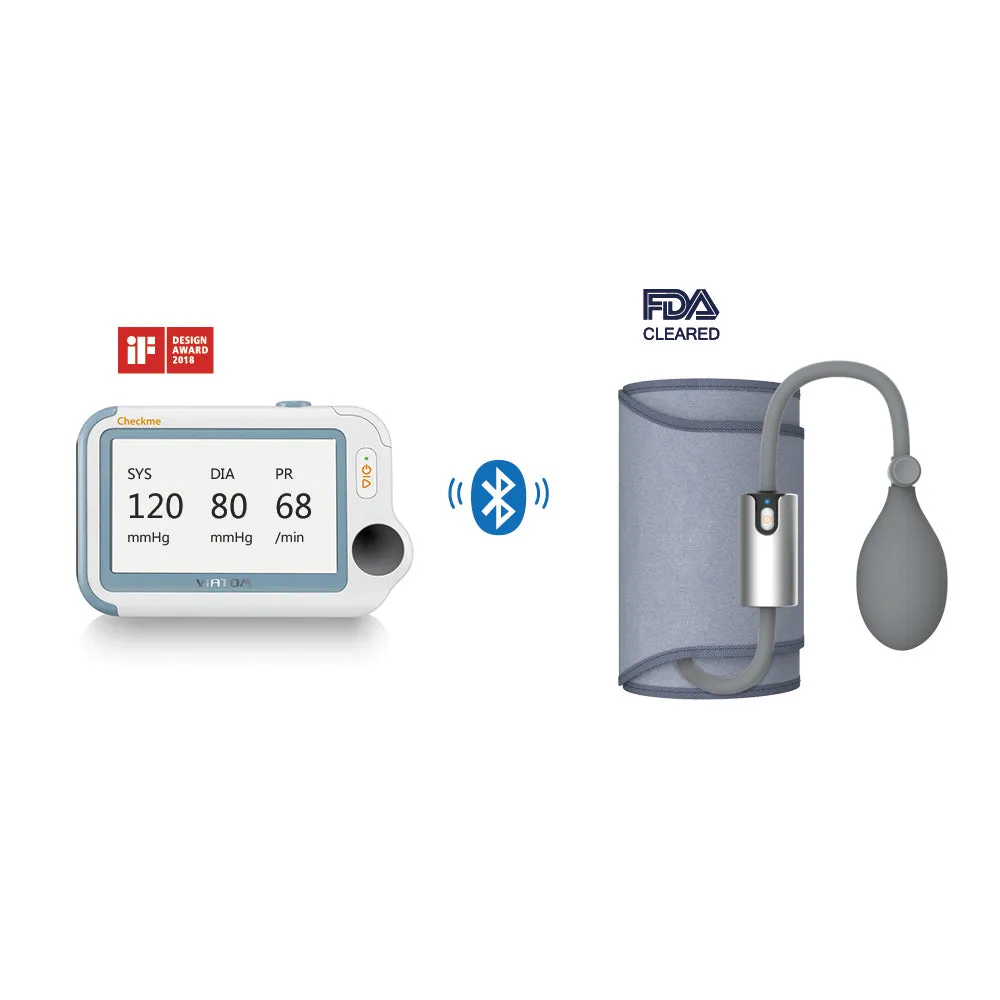

- Blood Pressure Accessory
- EKG & SpO2 Cable Splitter
- Blood Glucose Meter Kit: Blood Glucose Meter, Test Strips, Lancing Device, Sterile Lancet, Two AAA Alkaline Batteries, User Manual
- Carrying Case
----
Specifications
| Name | Vital signs monitor |
| Size | 88×56×13 mm(main unit) |
| Weight | 64g (main unit) |
| Display | 2.7” touch screen, E-ink HD |
| Connector | Micro D connector |
| Wireless connectivity | Built-in Bluetooth dual mode, support 4.0 BLE |
| Battery type | Rechargeable lithium-polymer battery |
----
ECG Measurement
- Lead type:
- Integrated ECG electrodes,
- External ECG cable and electrodes
- Lead set: Lead I, lead II
- Measurement mode: Episode, Continuous
Sp02 Measurement
- SpO2 range: 70% to 100
- SpO2 accuracy : 80-100%:±2%, 70-79%:±3%
- PR range: 30 to 250 bpm
- PR accuracy: ±2 bpm or ±2%
- PI range: 0.5-15

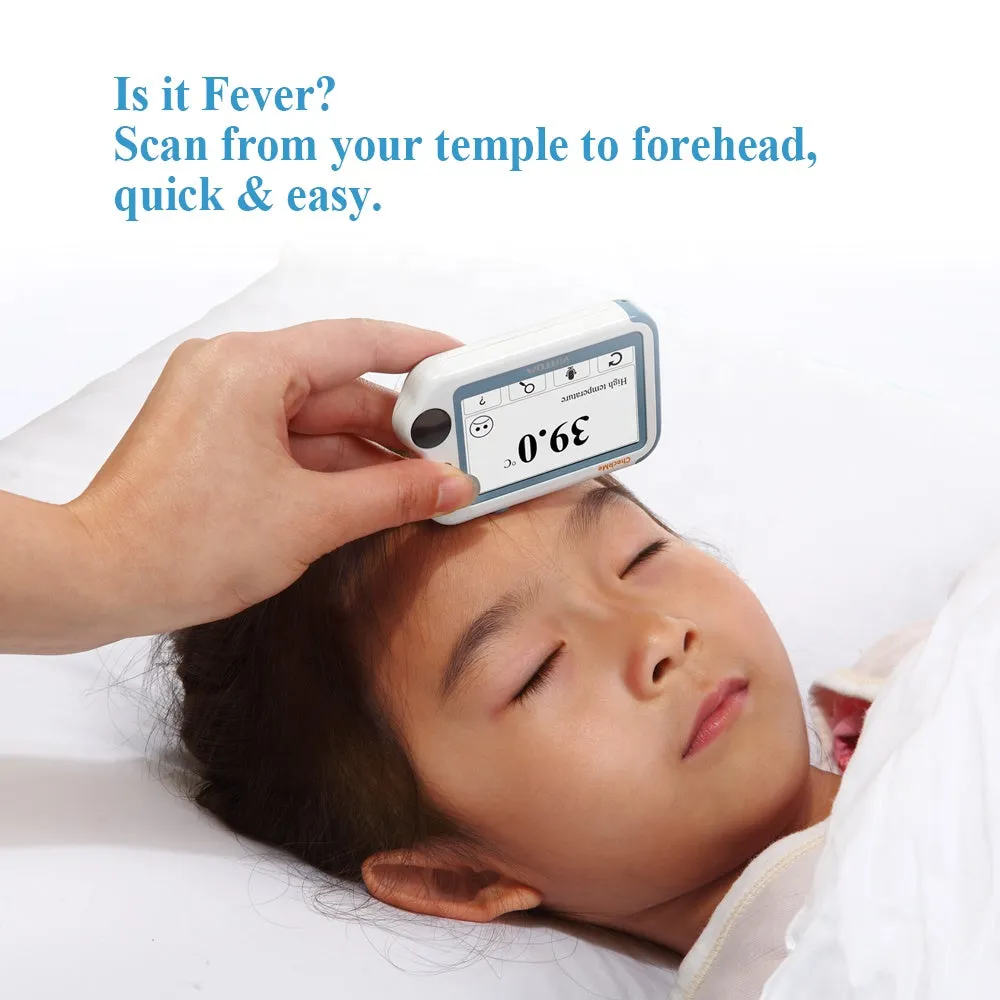

Temperature Measurement
- Technique: Infrared body temperature
- Measurement range: 34.0 to 42.2 °C (94.0 to 108.0 °F)
- Measurement accuracy: ±0.2°C or ±0.4°F
----

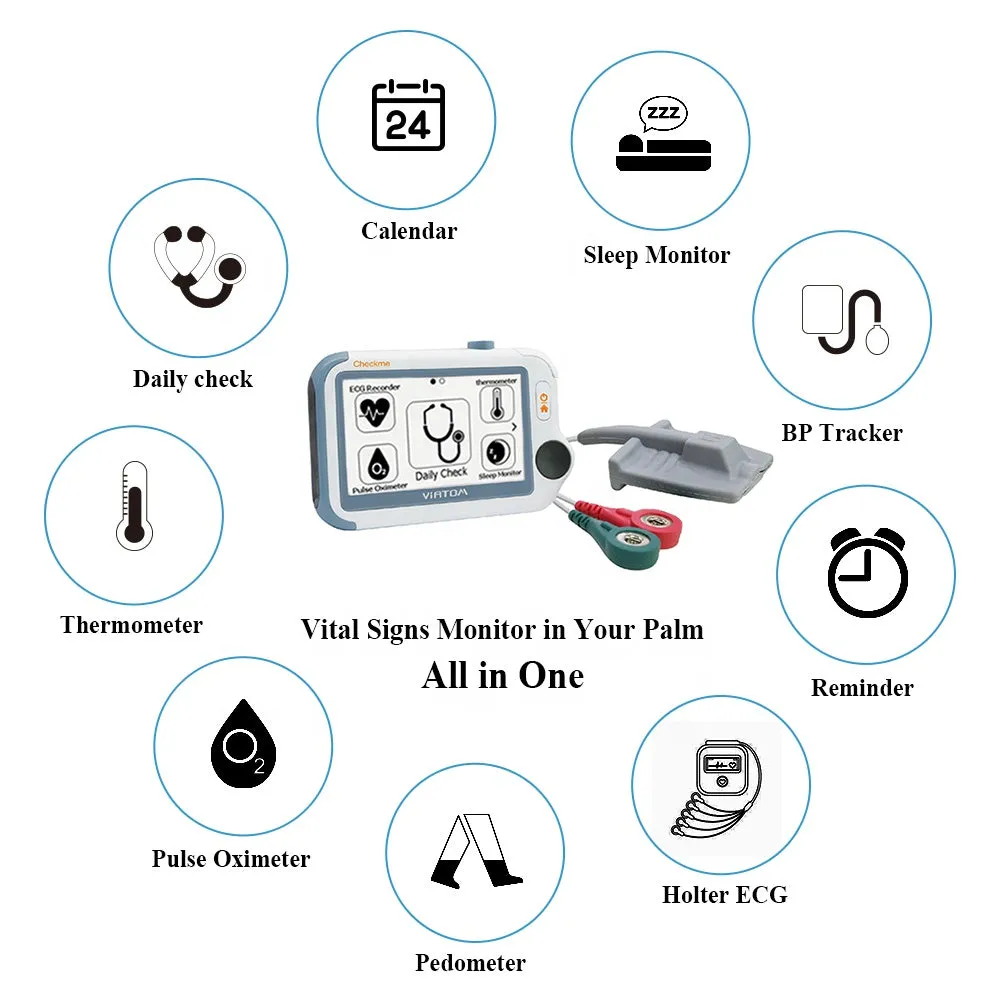

ALL IN ONE
- Supports both cable and cable-free operation
- Built-in SpO2 sensor supports cable-free operation
- Extemal soft-cover SpO2 sensor is available
- Oxygen saturation, pulse rate and pulse strength are available
- Oxygen saturation, pulse rate and pulse strength are available
SpO2 monitor for OSA
- Check me is an ideal device for monitoring and screening sleep problems, such as Obstructive sleep apnea (OSA)
- Comfortable wristband and soft-cover SpO2 sensor
- Records SpO2 and pulse Rate up to 10 hours
- SpO2 and pulse rate trending is available for tracking
- Mobile APP enables you to look into the SpO2 change in details
