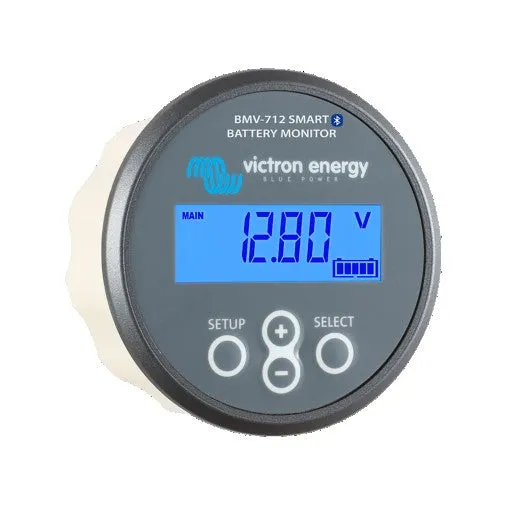

This is our "go to" Battery Monitor especially when we are installing Lithium batteries.
Easy to use - clear display and Phone App for even more details of Battery use.
Built in Bluetooth for ease of programming and monitoring

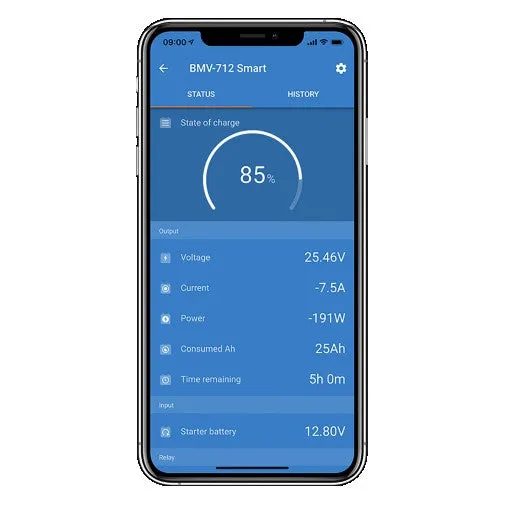

Download the Victron Bluetooth app:
- Customize settings
- Monitor all important data on a single screen
- View the history
- update the software when new features become available
| Specifications | BMV 712 Smart |
| Supply Voltage Range | 6,5-70 VDC |
| Current Draw, back light off | 1mA |
| Input Voltage range, Auxiliary Battery | 6,5 – 70 VDC |
| Battery Capacity (Ah) | 1-9999 Ah |
| Operating Temperature Range | -40 50°C (-40 - 120°F) |
| Measures voltage of second battery, or temperatures, or midpoint | Yes |
| Temperature Measurement range | -20 50°C |
| VE.Direct communication port | Yes |
| Bistable Relay | 60V/1A Normally open (function can be inverted) |
| Resolution and Accuracy (with a 500A shunt) | |
| Current | ±0,01A |
| Voltage | ±0,01V |
| Amp hours | ±0,1Ah |
| State of Charge (0-100%) | ±0,1% |
| Time to go | ±1 min |
| Temperature (0-50°C or 30 - 120°F) | ±1°C/°F |
| Accuracy of current measurement | ±0,4% |
| Accuracy of voltage measurement | ±0,3% |
| Installation and Dimensions | |
| Installation | Flush Mount |
| Front | 63mm diameter |
| Front bezel | 69 x 69mm (2.7 x 2.7 inch) |
| Body Diameter | 52mm (2.0 inch) |
| Body Depth | 31mm (1.2 inch) |
| Standards | |
| Safety | EN 60335-1 |
| Emission/Immunity | EN 55014-1/EN 55014-2 |
| Automotive | ECR R10-4/EN 50498 |
| Accessories | |
| Shunt (Included) | 500A/50mV |
| Cables (Included) | 10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘ ’ connection |
| Temperature Sensor | Optional (ASS000100000) |

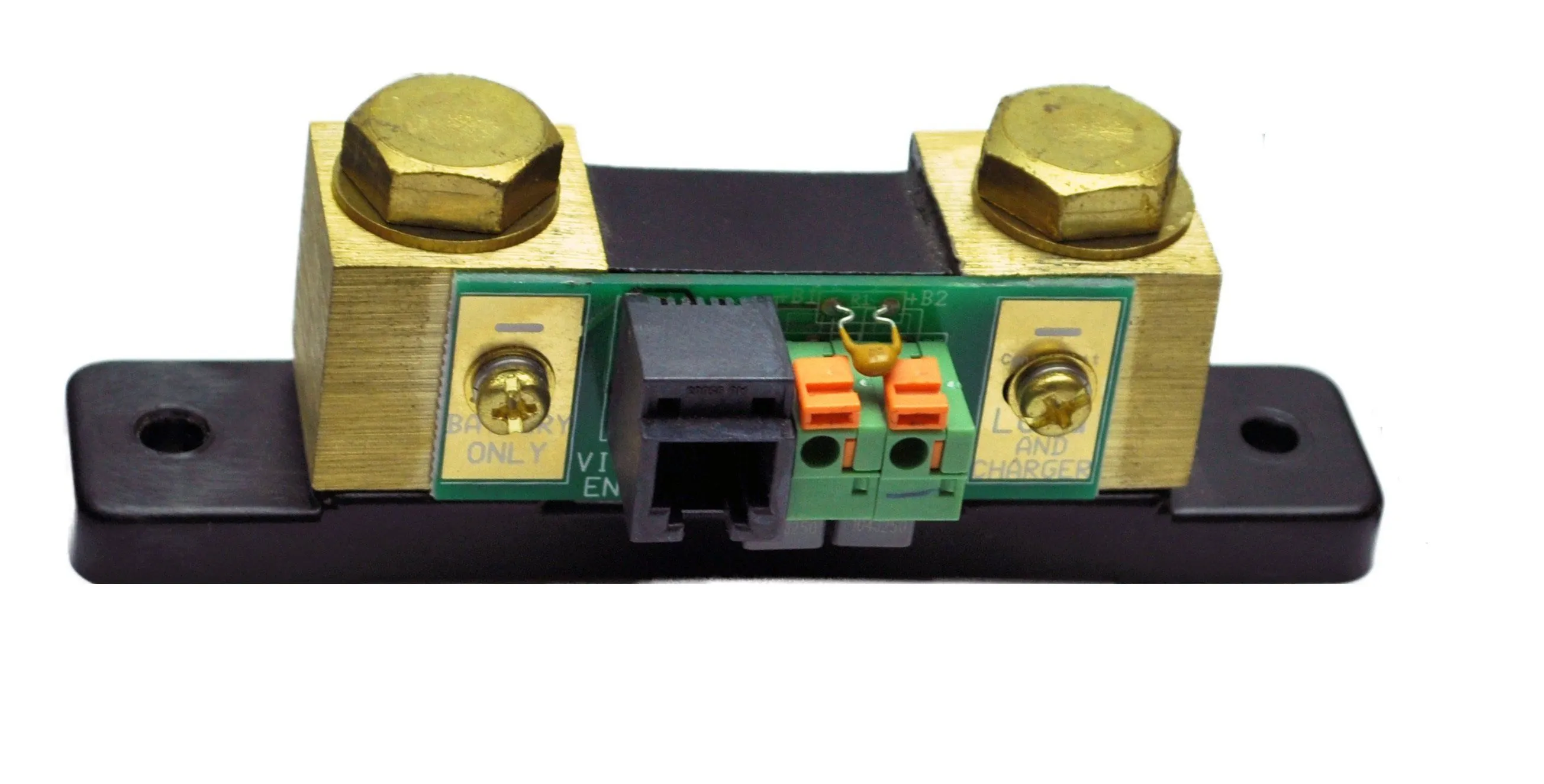

The shunt connects in the negative line to the battery.
The left hand connection is labelled "Battery Only" and that should be the only connection to the battery. Everything else connects to the right hand terminal which is labelled "Load and Charger".
The socket is for the RJ12 connector that goes to the meter itself. The supplied cable is 10 meters long (approx 30 feet) but other lengths are available.
The two connectors with the orange tabs are for the temp sensor/power supply connections.
One tip to remember is to make the connection to the battery last. If you don't the other end of the power wire could come in contact with a negative connection and blow the fuse.
