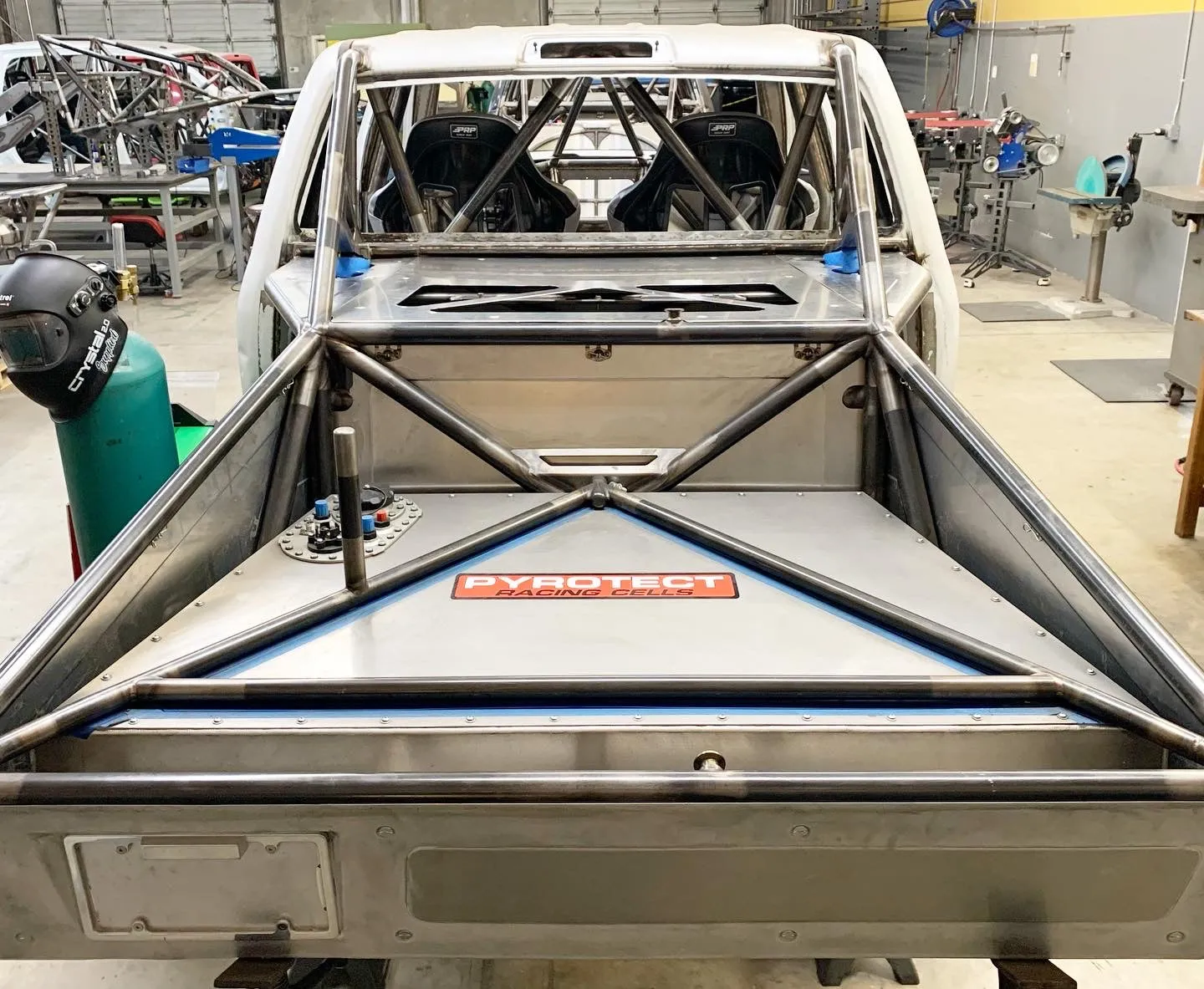

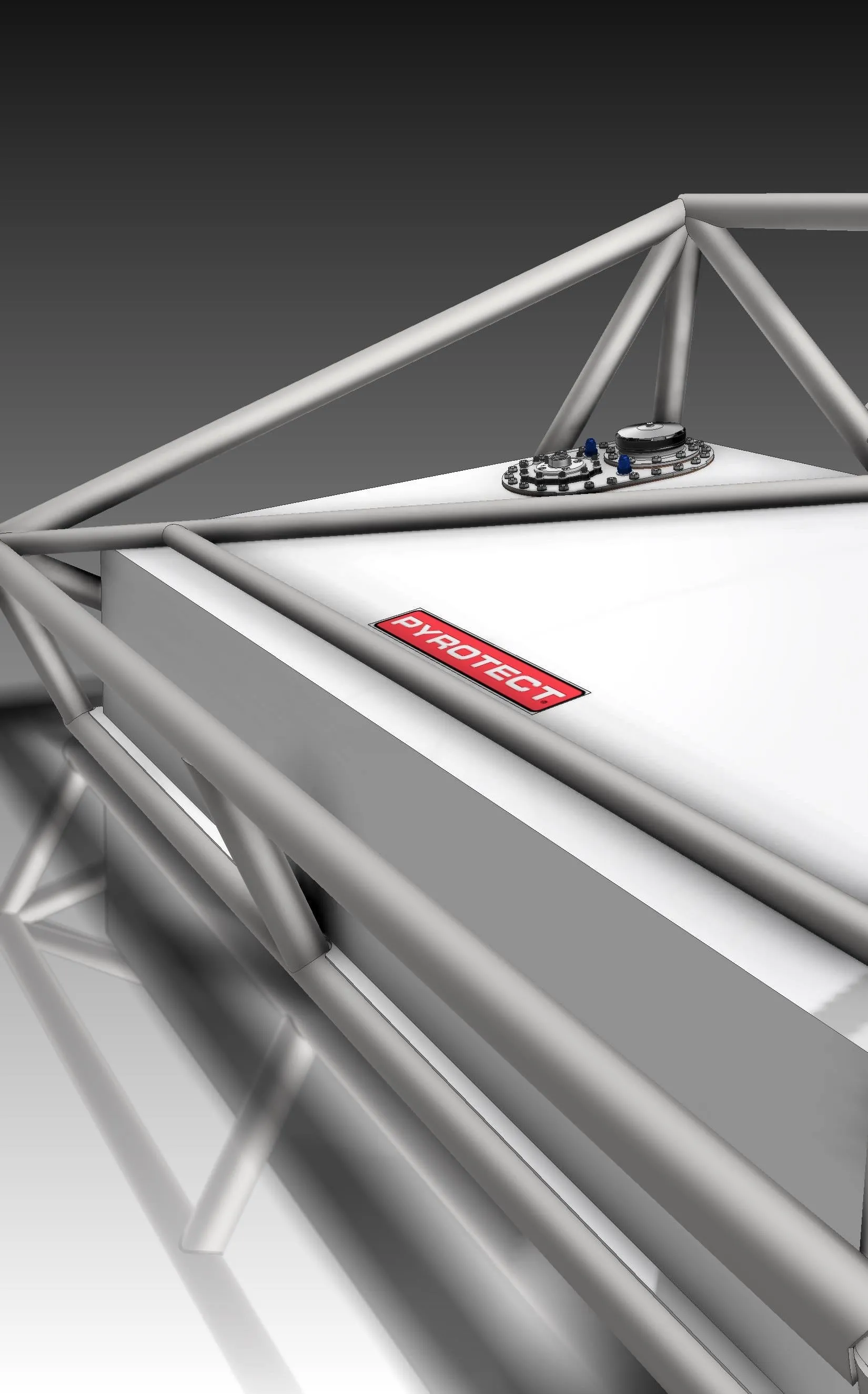

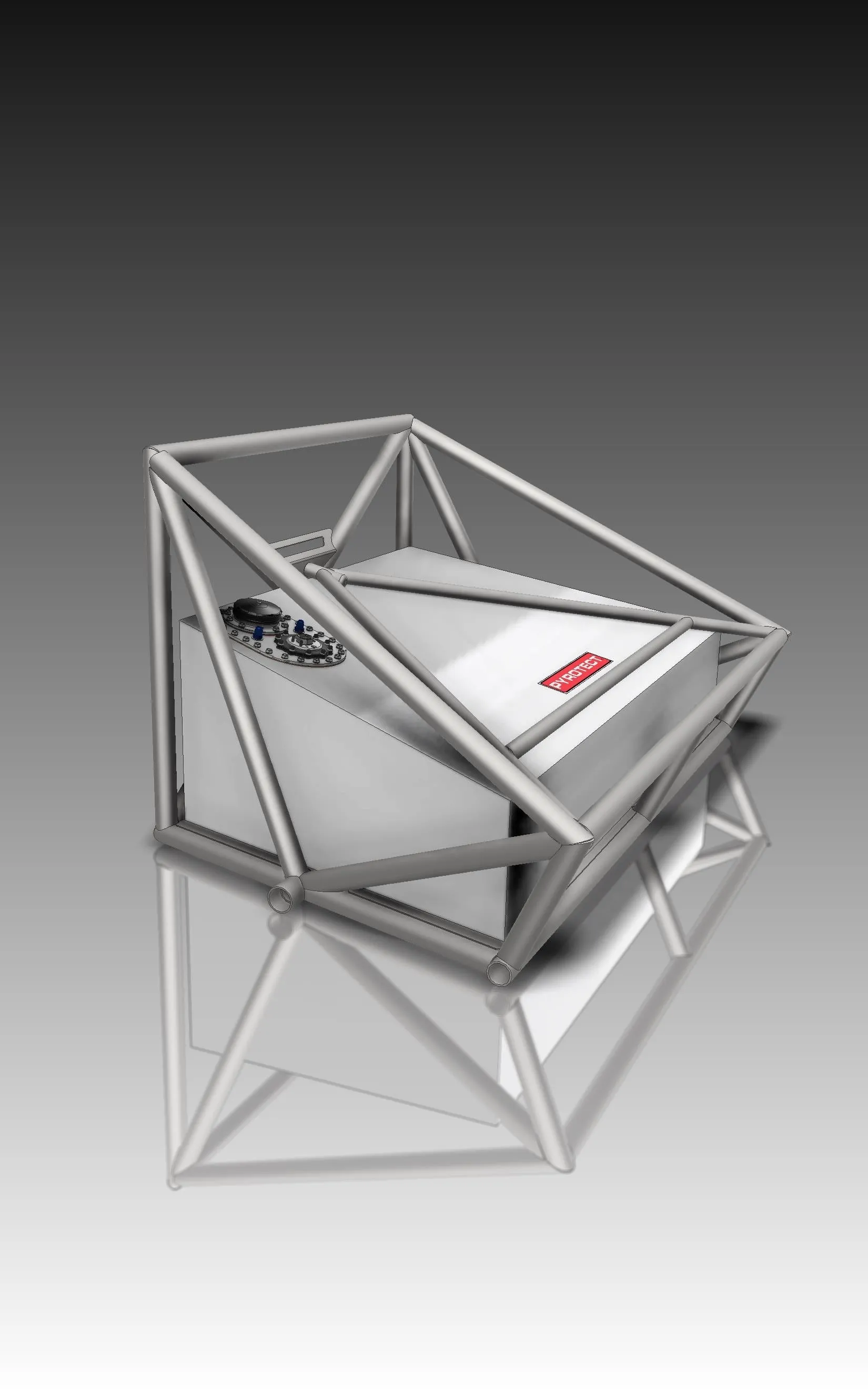

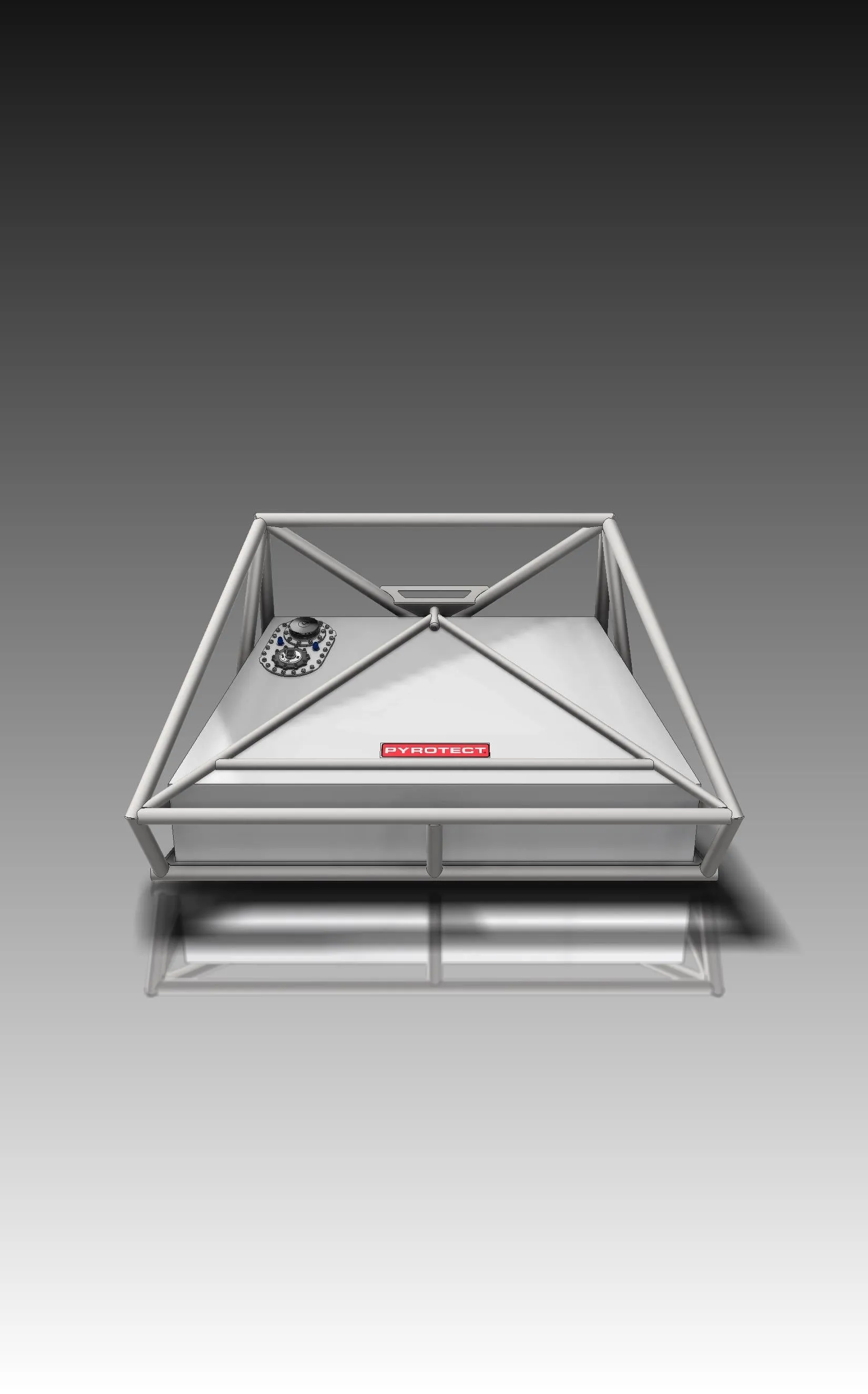

Kibbetech Wedge Fuel Cell

Built by Pyrotect exclusively for Kibbetech

75 gallon capacity

.090” Aluminum Can

Yellow Safety Foam Baffling

3.5” Standard Fill w/Threaded Cap

0-90Ohm Sender

6X10 Fill Plate Drivers Side:

Single high pressure fuel Pump w/-8 Pickup

-6 Return

-8 Vent

Single Holley Hydramat 11”x11”

FIA-FT3.5 Certified 20oz Dura Cell

Freight shipping to be determined

Email for custom options

Approximate Dimensions;

Front height; 16.25''

Rear Height; 9.75''

Front width; 40.25''

Rear Width; 57.125''

Overall Length; 31.25
