KEY FEATURES
- Honest, uncoloured sound
- Bluetooth input with TWS stereo linking
- Balanced inputs – XLR, 6.3 mm combi jack
- RCA stereo inputs
- Class D Bi-amplified.
- Woven fibreglass composite LF cones
DESCRIPTION

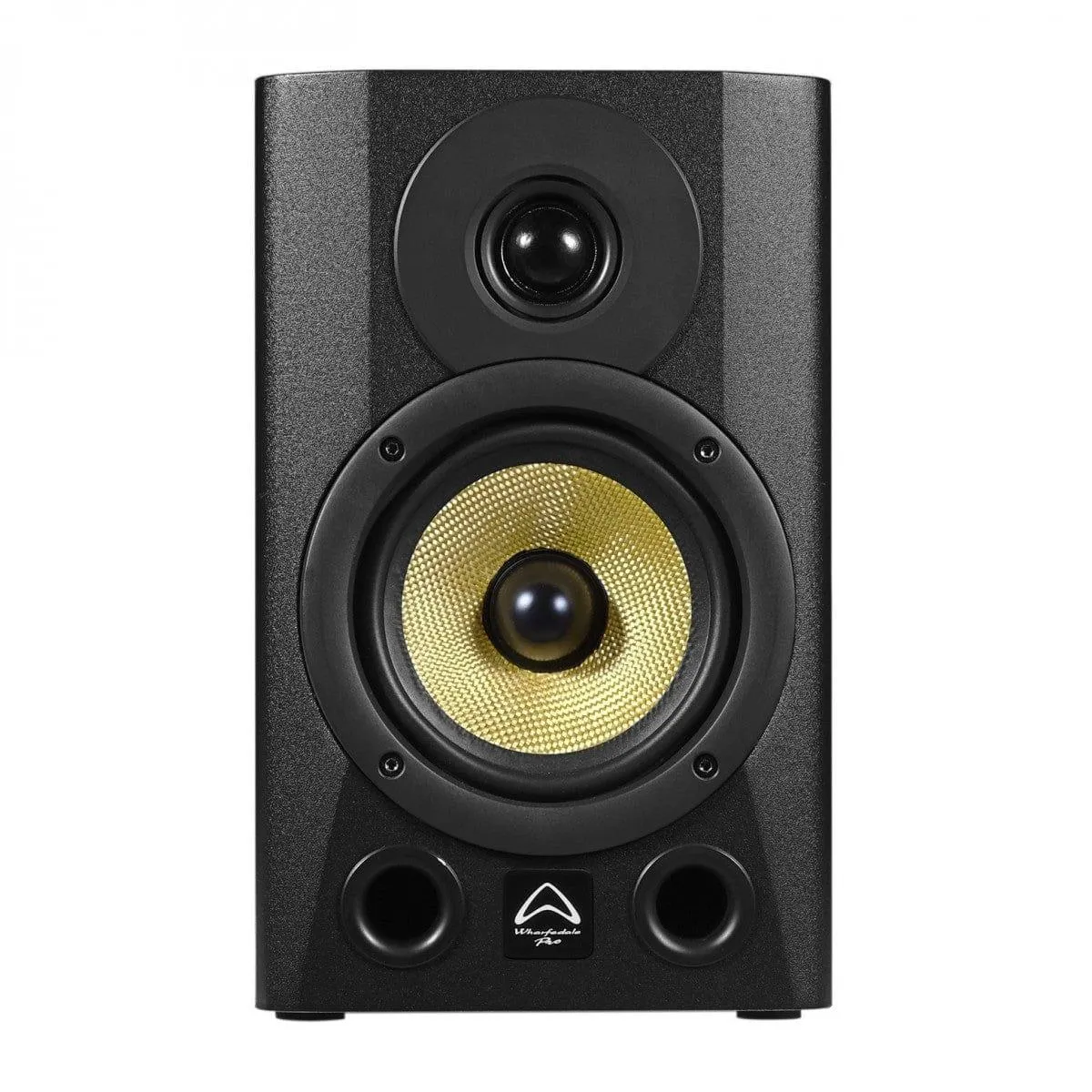

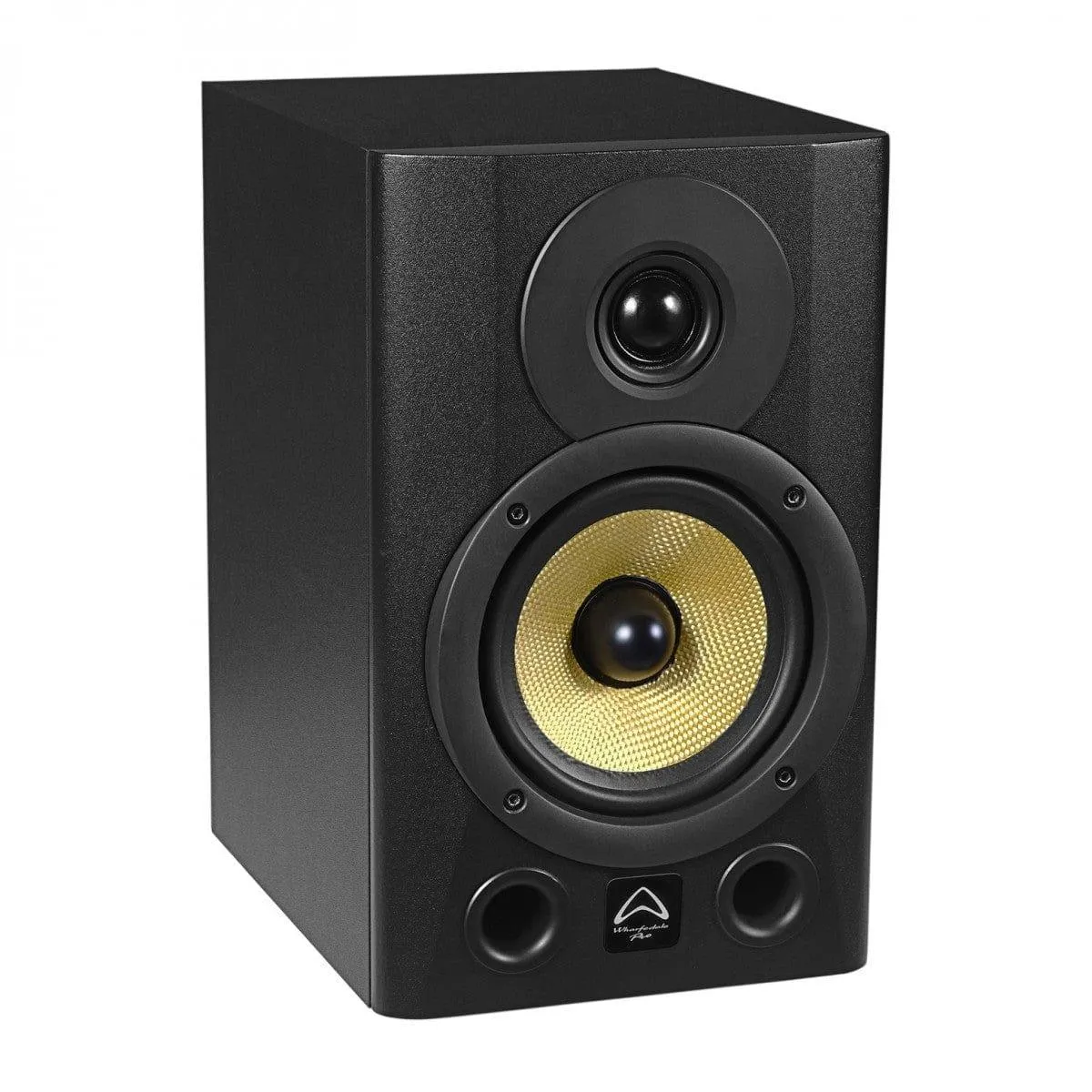

The Wharfedale Pro Diamond Studio 5-BT is a compact studio monitor that provide highly accurate sound. The most important thing when mixing is that you have monitors you can rely on with an an uncoloured sound and a full frequency response. With a 5" woven fibreglass woofer and two bass reflex ports built into the enclosure, the Diamond Studio 5-BT offers consistent, smooth low-frequency reproduction. A soft dome tweeter extends this same accuracy to the high-frequencies, for a smooth studio monitoring experience that doesn't mask a thing.
Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair. Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input.
Diamond Studio -BT monitors are designed to be super accurate. Experience every nuance… or even every problem with your mix. Diamond Studio BT are honest.
A great mix is still a great mix. A bad mix, is still a bad mix. Either way, Diamond Studio -BT will let you hear the reality.
SPECIFICATIONS
| Freq. Range (-10 dB) Analog Input | 45 Hz-25 KHz |
| Maximum SPL (peak @1 m) | 110 dB |
| LF Transducer | 5″ Fiberglass composite woofer |
| HF Transducer | Silk Soft dome tweeter |
| Coil Size (mm / inches) | 25.4 mm / 1” |
| High Frequency Coverage (H x V) | 135° x 110° |
| Total Power Amplifiers | 140 W |
| Low-Frequency Power Amplifier (Class D) | 80 W Continuous / 160 W Peak |
| High- Frequency Power Amplifier (Class D ) | 60 W Continuous / 120 W Peak |
| Electronic Crossover: | |
| Crossover Frequency | 2.2 KHz |
| Controls | |
| Equalization (dB) | HF / LF Level Adjust (-2, 0, 1 , 2) |
| System Volume | -∞ to 10 dB |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED/white LED (LOGO) |

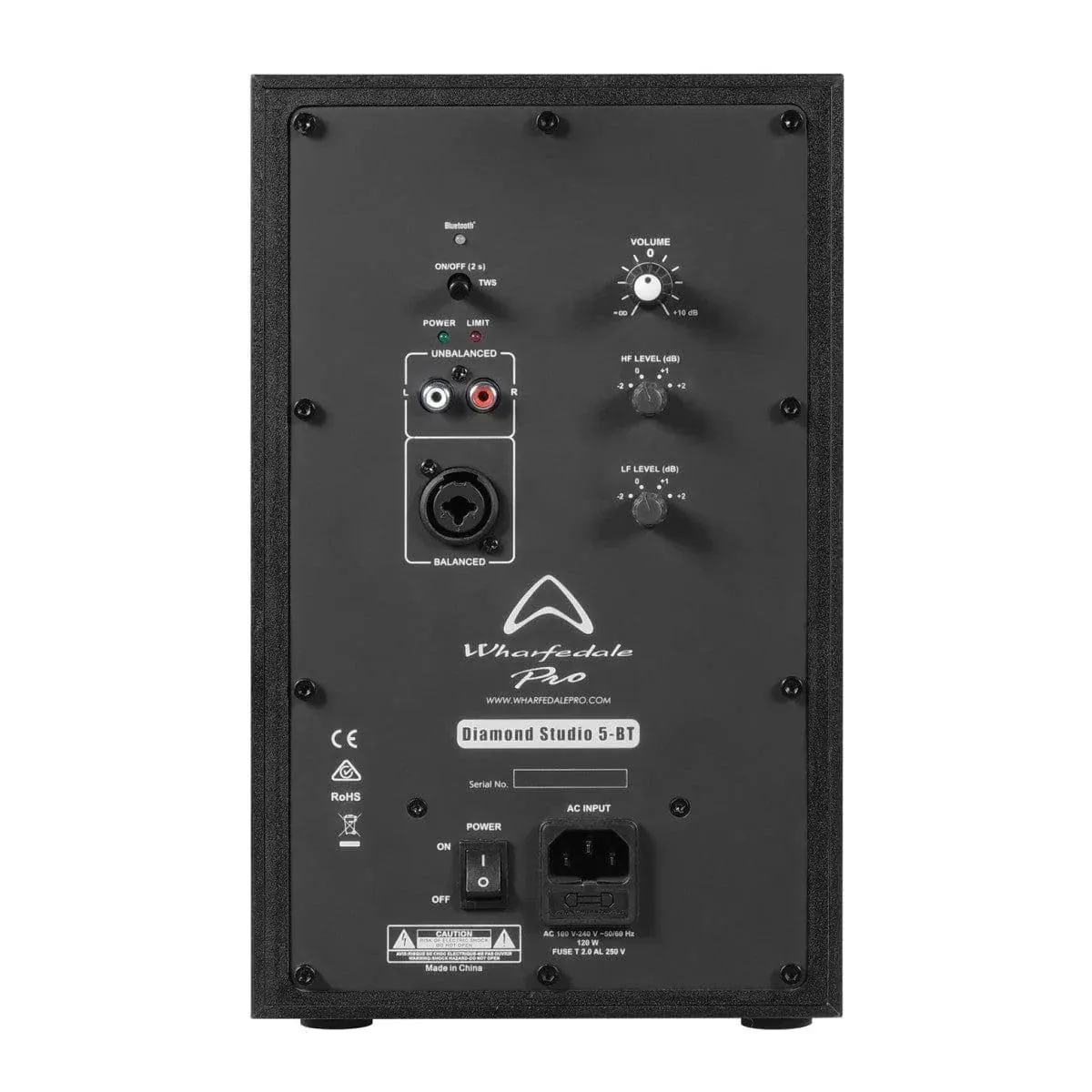

| Input type | Balanced / Unbalanced / Bluetooth |
| Input Connectors | TRS JACK / FEMALE XLR/RCA |
| AC Power Options | 100 V-240 V |
| Power On Indicator | LED |
| Cabinet Material | MDF |
| Cabinet Colour | black |
| Dimensions (Unpacked): | |
| Height | 290 mm /11.42 in |
| Width | 180 mm /7.1 in |
| Depth | 240 mm /9.45 in |
| Weight | |
| Net Weight | 5.62 kg /12.4 lbs |
