KEY FEATURES

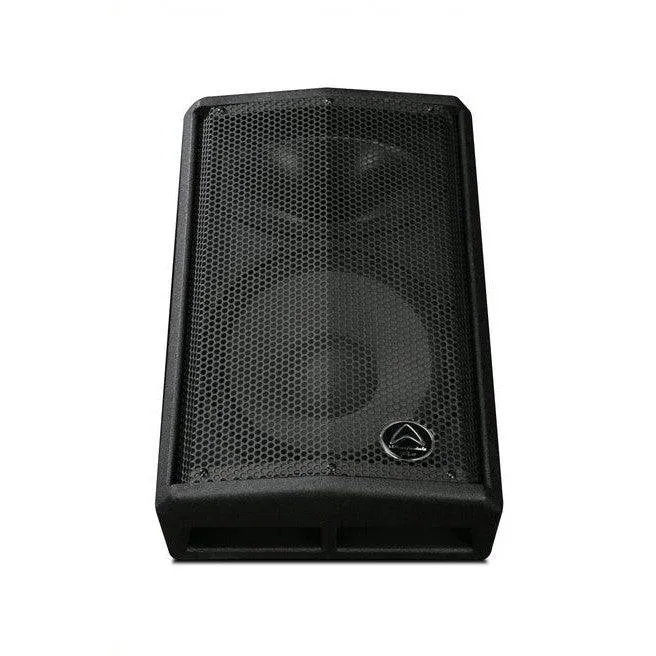

- 12″ two-way bi-amplified monitor
- 250 watts Continuous power
- 500 watts Peak power
- 90° x 60° dispersion
- 1.75″ HF Compression driver
- 2.5″ LF voice coil
- 7-band Graphic EQ
- Power output for secondary passive loudspeaker
- 129 dB Max SPL @ 1 meter
DESCRIPTION
DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.
The full-range models feature advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges and a practical 2 channel mic/line mixer makes life on stage easier.
The floor monitor models feature a 7-band EQ to help deliver maximum volume without feedback and a handy powered output for connecting to passive floor monitors.
While the electronics of DVP-AX set them apart from the competition, it is important not to overlook the custom Wharfedale Pro drivers in this lineup. Using dual layer LF transducers and the acclaimed IRIS X compression drivers, the mechanical features of DVP-AX have not been compromised.
DVP-AX delivers advanced electronics in a user-friendly format – but in a road-ready cabinet.
SPECIFICATIONS
| System Type | Active 12″ 2-way monitor |
| Frequency Response ( /-3 dB) | 60-18 KHz |
| Frequency Range (-10 dB) | 55-20 KHz |
| Maximum SPL @1 m | 129 dB |
| Sensitivity @ 1 W / 1 m | 98 dB |
| LF Transducer Size (mm / inches) | 305 mm / 12″ |
| LF Coil Size (mm / inches) | Dual layer 2.5″ |
| HF Transducer Type | Compression Driver |
| HF Coil Size (mm / inches) | 44 mm / 1.75″ |
| HF Exit Size (mm / inches) | 25 mm / 1″ |
| HF Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | 90° x 60° |
| LF Power Amplifier | Class D, 250 W / 500 W (8 Ω ) RMS/Peak Watts |
| HF Power Amplifier | Class D, N/A RMS/Peak Watts |
| DSP | 7-band EQ |
| Controls—D-EQ | 60 Hz, 120 Hz, 480 Hz, 1 KHz, 4 KHz, 8 KHz, 16 KHz |
| Amplifier Protection | Power On, Thermal, Low Voltage |
| Driver Protection | DC, Short, Clip Indicator |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED (Red LED front) |
| INPUTS | |
| Input Sensitivity | Balanced: 775 mV |
| Maximum Input Level | 6 V |
| Input Connector | 2XLR & 21/4″ (Line/MIC) |
| Input Impedance | Balanced: 20 K |
| LPF control | N/A |
| Polarity Control | N/A |
| OUTPUTS | |
| Line Output Connector | XLR (Balanced out) |
| AC Power Options | SMPS |
| Voltage | 220-240 V 50/60 Hz, 100-120 V 50/60 Hz |
| Pole Socket | N/A |
| Handles | 2 carry handles (one on each side) |
| Enclosure Material and Finish | MDF / Black paint |
| Grille Material & Finish | Steel |
