KEY FEATURES
- Carpet covered hard working PA speakers
- 4-way rubberised handles
- Elliptical 90° x 60° dispersion
- Full series lineup consisting of 8 models
- NL4 (speakON compatible) and 1/4” connectors
- 3 dB HF Frequency boost switch
- Subwoofers feature internal crossover
DESCRIPTION

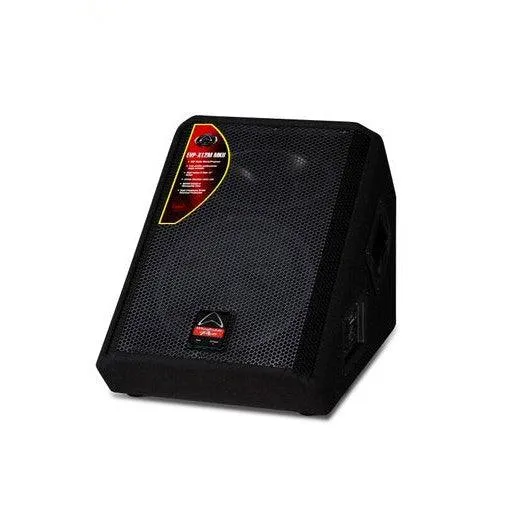

Each EVP-X MKII PA speaker and subwoofer is protected by a durable carpet covering and steel grille.
The MKII version features a 4-way carry handle and a dual angle pole mount making it both portable and versatile for varying installation applications, ensuring the HF sound is directed straight at your audience.
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the EVP-X MKII series use this same elliptical waveguide design which makes for controllable coverage when using multiple EVO-X series loudspeakers.
SPECIFICATIONS
| System Type | Passive |
| Configuration | Two-way Monitor |
| Frequency Response ( /-3 dB) | 60 Hz – 20 KHz |
| Frequency Range (-10 dB) | 55 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 98 dB |
| Calculated Maximum SPL @1 m | 129 dB |
| System Rated Impedance | 8 Ω |
| | 1200 w |
| Crossover frequency | 2.4 KHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| 2 x 1/4” Jacks |
